VBOX Touch - Brake Temperature Monitoring App

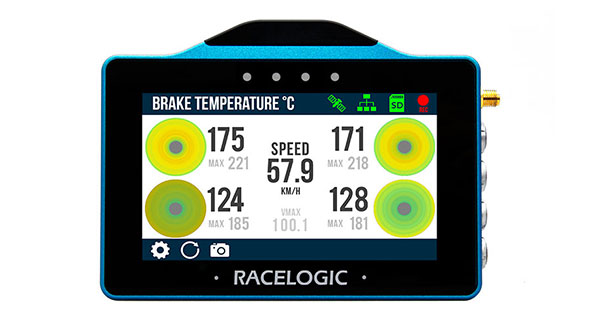

  • Brake Temp

  • Brake Temp

  • sensor settings 1

  • sensore settings 2

Brake Temperature Monitoring App

  • Released: March 2024

  • Version: 1.1.4.51

  • About

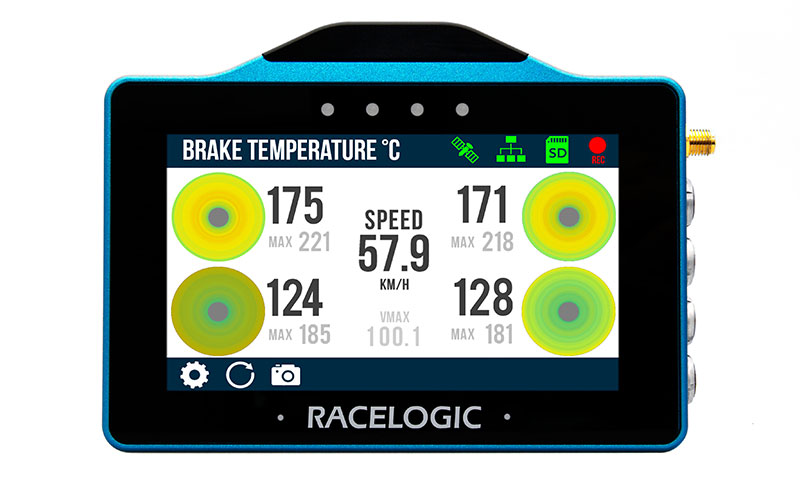

    The Brake Temperature Monitoring app provides you with a real-time display of the temperature of each brake disc while on track. This is invaluable information when looking for the optimum brake bias and tyre setup for a race.

    The responsive, colour display offers a visual representation via 64 individual heat maps, as well as live and maximum temperature values.

    In order to use this app, you must also purchase the Brake Temperature Monitoring Sensors & Wiring Loom (RLACS314).

  • How to upgrade?

    1. Download the latest update file below
      (Your unit must be registered to receive the required login details for the download. Register here.)
    2. Unzip the folder and place the .rvf file on to the root directory of the SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up VBOX Touch.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

  • Release notes

    Support for new hardware variants.

    Full Release Notes

Download

App Store

Read more …VBOX Touch - Brake Temperature Monitoring App

  • Last updated on .
  • Hits: 10273

Written on .

VBOX Touch - Speed Profiler App

  • Main

  • General settings

  • Test settings

  • Test start

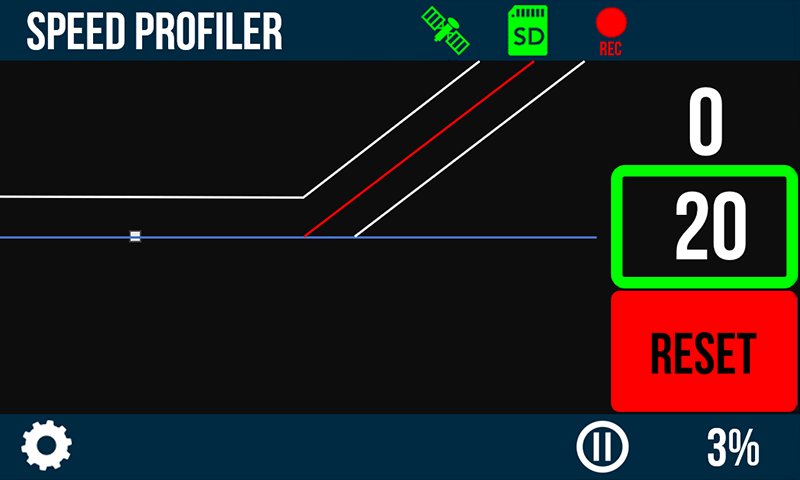

  • Test tun

  • Test driver input

  • Durability

Speed Profiler App

  • Released: 29 November 2023

  • Version 1.1.2.15

  • About

    Loaded with this app, a VBOX Touch or PerformanceBox Touch is able to give audible and visual guidance to a driver based on a pre-set speed profile. It is ideal for durability, fuel economy and tyre testing where you want to ensure consistent and repeatable test conditions with regard to speed and distance.

    The app includes the same CAN input data capture and CAN output transmission as the standard Performance app v1.5.

    The speed profile can be created by generating a .spp file in Notepad and loading it to the VBOX Touch via an SD card (after the Speed Profiler app has been installed).

  • How to upgrade?

    1. Download the latest .rpf/.rvf file below.
      (Your unit must be registered to receive the required login details for the download. Register here.)
    2. Place the file on the root directory of the SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up VBOX Touch/ PerformanceBox Touch.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

  • Release notes

    Adds support for new VBOX Touch hardware variants.

    Full Release Notes

Back

Read more …VBOX Touch - Speed Profiler App

  • Last updated on .
  • Hits: 9294

Written on .

VBOX Touch - Multi-Function Display App

  • Decel

  • N1

  • N3

  • N4

  • N6

  • analogue gauge

  • bar graph

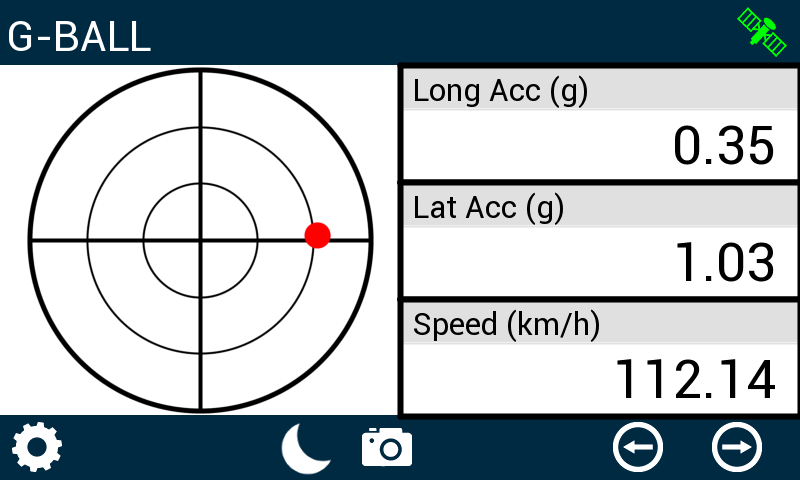

  • g-ball

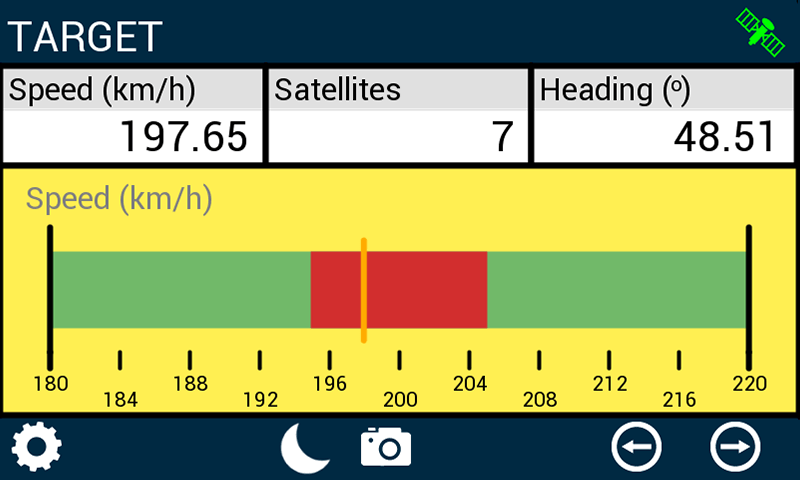

  • target

  • target 2

Multi-Function Display App

  • Released: 12 September 2024

  • Version: 1.5.5.119

  • About

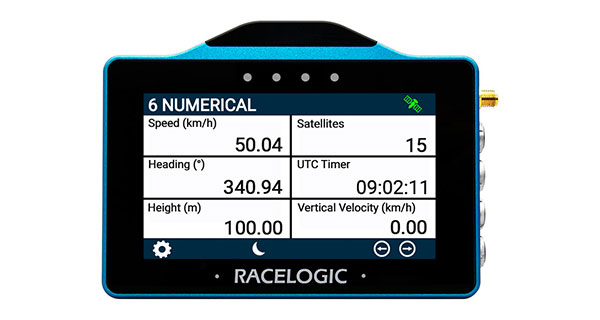

    The Multi-Function Display app allows you to use the VBOX Touch as a display when connected to a VBOX.

    It will show data from GPS and CAN-derived channels that are outputted over CAN. Up to six parameters can be displayed on a single screen, such as speed, lateral & longitudinal acceleration, radius of turn, distance travelled, heading and various brake test channels. It can also calculate and present performance test results, live from the test vehicle.

    You will need the cable 'RLCAB005-C' to connect VBOX Touch.

  • How to upgrade?

    1. Download the latest update file below
      (Your unit must be registered to receive the required login details for the download. Register here.)
    2. Unzip the folder and place the .rvf file on to the root directory of the SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up VBOX Touch.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

  • Release notes

    1.5.5.119

    • [NEW] Added ability to set alerts for the Trigger channel. The feature can now be used to notify the user when a digital light barrier has been crossed.
    • [FIX] Peak acceleration result now populate when using VB2SX.

    Full Release Notes

Download

Back

Read more …VBOX Touch - Multi-Function Display App

  • Last updated on .
  • Hits: 10131

Written on .

VBOX Touch - Tyre Temperature Monitoring App

  • Decel

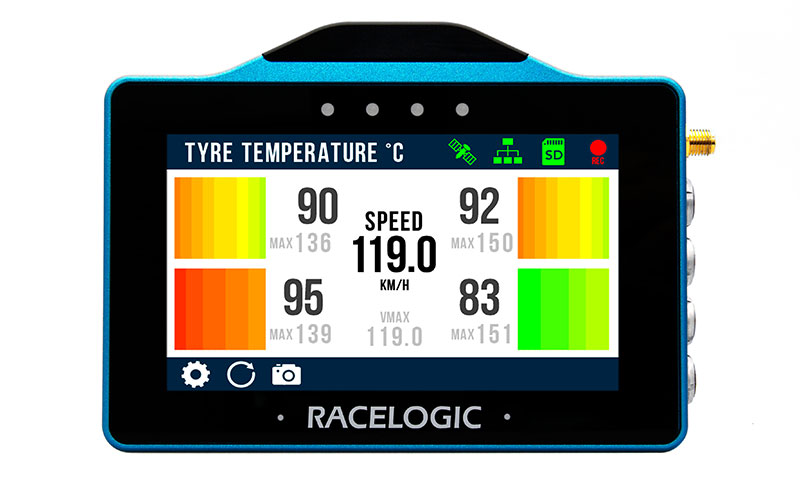

  • Tyre temps

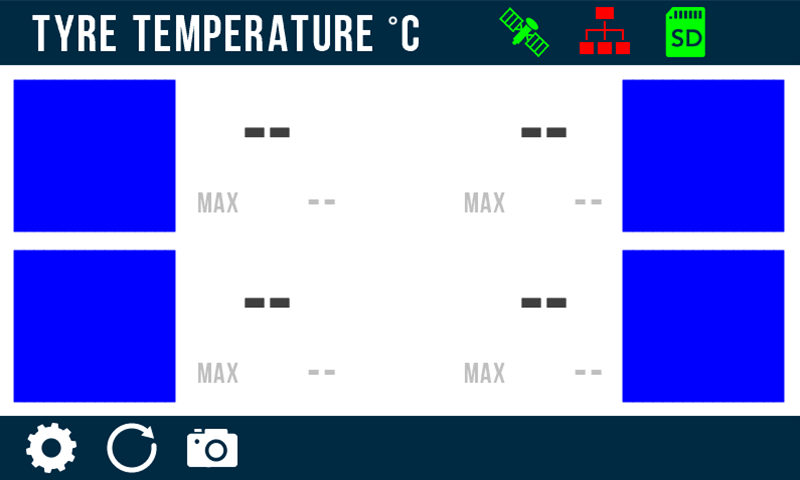

  • No sensors

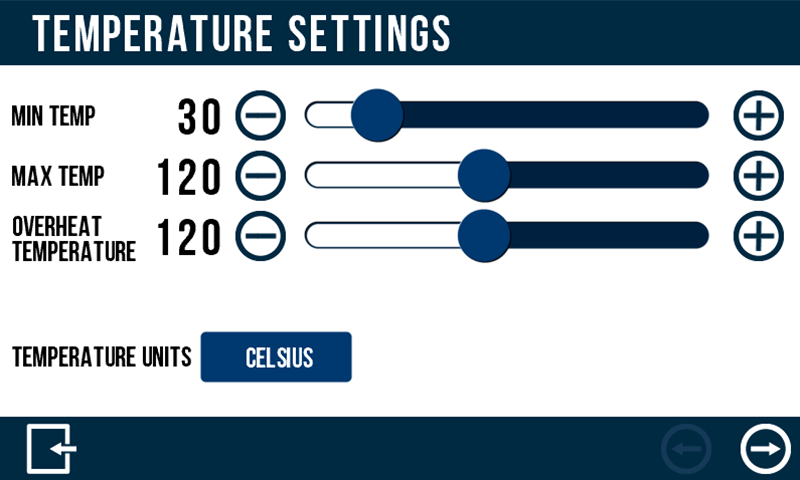

  • temp settings

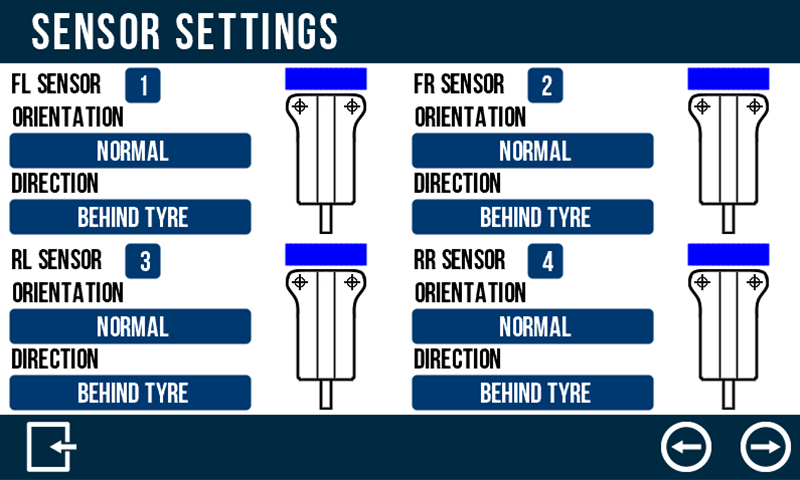

  • sensor settings 1

  • sensore settings 2

Tyre Temperature Monitoring App

  • Updated: March 2024

  • Version: 1.1.4.51

  • About

    Measure, log and display the surface temperature of all 4 tyres in real-time on the VBOX Touch. The responsive, colour display offers a visual representation via 64 individual heat maps, as well as live and maximum temperature values.

    In order to use this app, you must also purchase the RACELOGIC tyre temperature sensor kit (RLACS272).

  • How to upgrade?

    1. Download the latest update file below
      (Your unit must be registered to receive the required login details for the download. Register here.)
    2. Unzip the folder and place the .rvf file on to the root directory of the SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up VBOX Touch.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

  • Release notes

    Support for new hardware variants.

    Full Release Notes

Download

Back

Read more …VBOX Touch - Tyre Temperature Monitoring App

  • Last updated on .
  • Hits: 9215

Written on .

VBOX Touch - Performance App

  • Decel

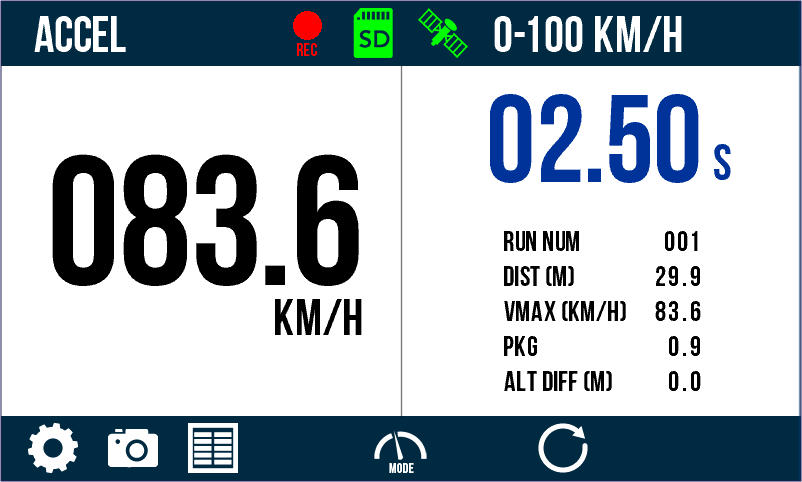

  • Accel primary screen

  • Accel Secondary Screen

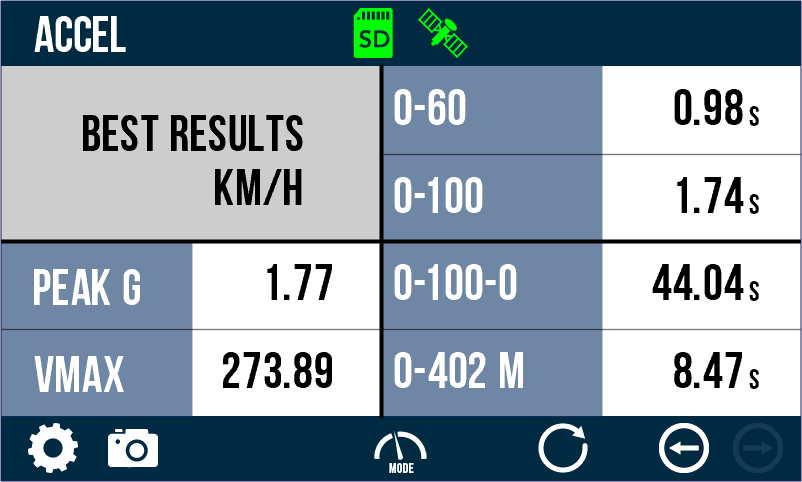

  • Accel (Best Results)

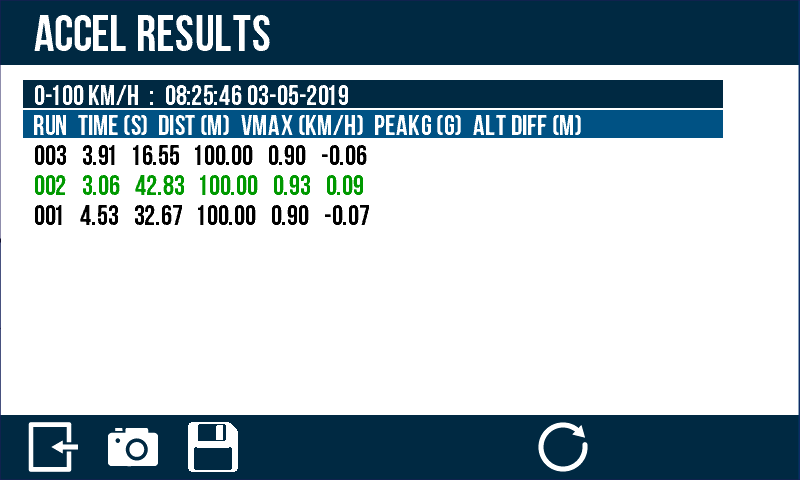

  • Accel results

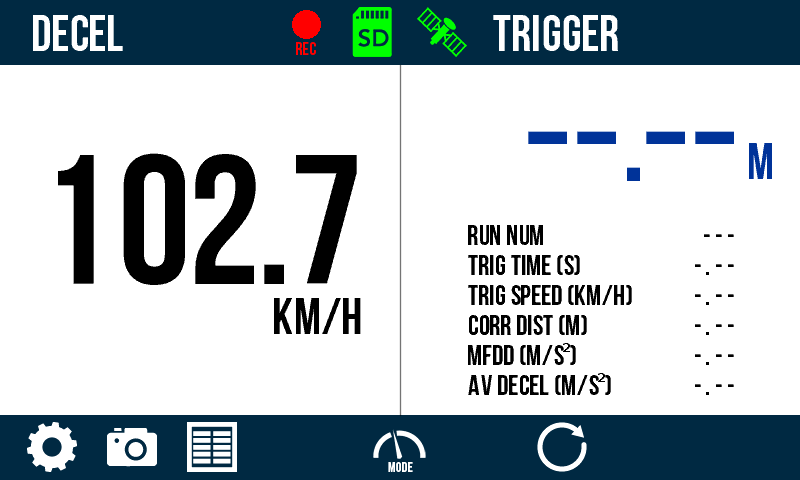

  • Decel trigger

  • decel trigger 2

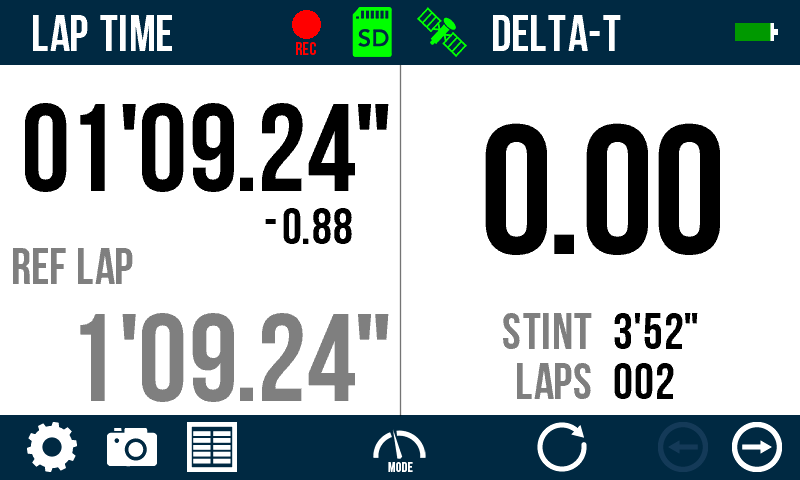

  • Lap time main

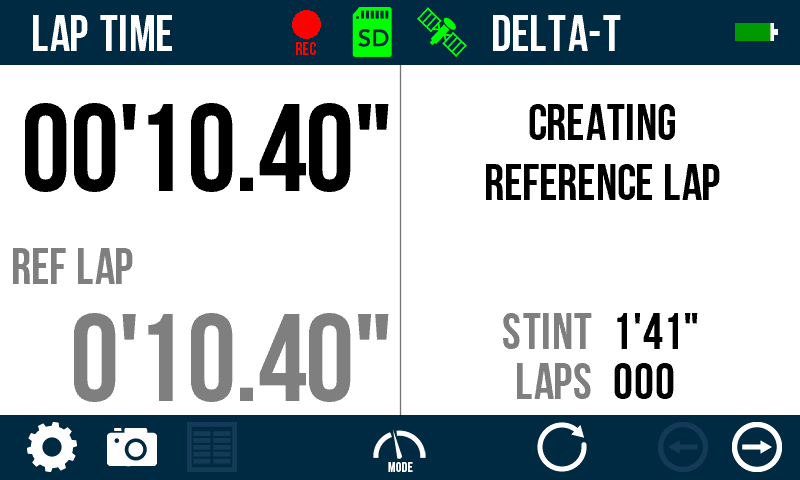

  • Lap time creating reference

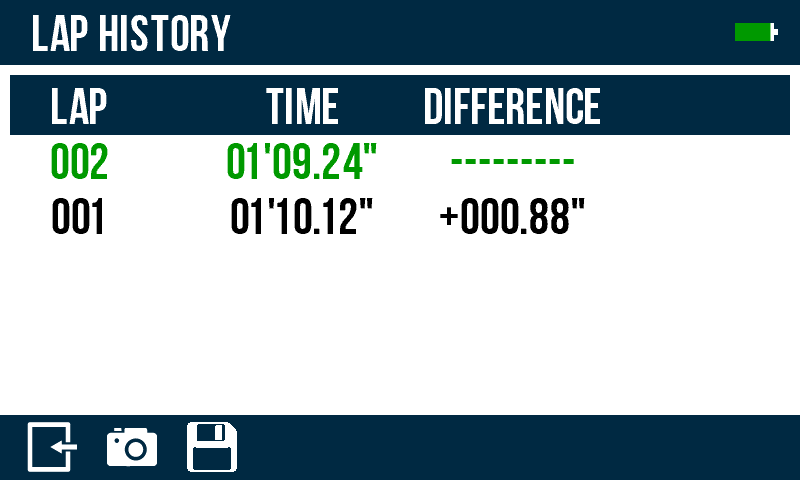

  • Lap history

  • Rolling lap time

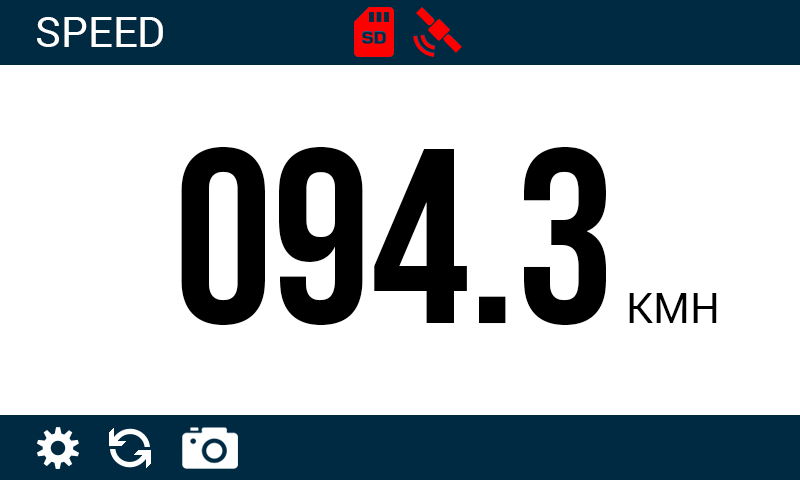

  • Speed Display

Performance App

  • Released: 18 October 2022 / 26 July 2023

  • Version: 1.5.2.29 / 1.5.3.35 (RTK)

  • About

    VBOX Touch (see screenshots) and Performance Box Touch come pre-installed with the Performance app.

    This app allows you to perform acceleration and deceleration tests, using one of the many pre-configured tests or by setting your own parameters. Lap timing and speed display modes enable you to see your current lap time, reference lap, live speed, average speed or maximum speed.

    VBOX Touch offers brake trigger input support, meaning you can easily test a vehicle's braking abilities using trigger and speed-to-speed methods.

    Test results are saved directly to the device's SD card and can be exported as a CSV file or a VBO file for a more detailed analysis in VBOX Test Suite.

  • How to upgrade?

    1. Download the latest update file below
      (Your unit must be registered to receive the required login details for the download. Register here.)
    2. Unzip the folder and place the .rvf/.rpf file on the root directory of the SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up the unit.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

    VBOX Touch firmware v1.5.2.29+ also includes an internal CAN database file. Please follow the additional instructions within the zip file for its installation.

  • Release notes

    VBOX Touch (1.5.2.29):

    • (New) Adds Support for CAN.

    Full release notes for VBOX Touch.

    VBOX Touch RTK  (1.5.3.35)

    • (New) Adds support for latest hardware.

    Full release notes for VBOX Touch RTK.

    Performance Box Touch (1.5.3.33):

Back

Read more …VBOX Touch - Performance App

  • Last updated on .
  • Hits: 12916

Written on .

Apps Store

Apps Store

VBOX Touch Apps

VBOX Touch comes pre-loaded with a versatile Performance application, and you can download additional apps below, free of charge. You can revert to the standard functionality of the VBOX Touch by downloading and installing the Performance app again. Please register your VBOX Touch in order to download the applications.

  • Performance (Default)

    VBOX Touch comes pre-installed with Performance app. This app allows you to perform acceleration and deceleration tests, lap timing and ...

    Learn more

  • Multi-Function Display

    This app allows you to use the VBOX Touch as a display when connected to a VBOX 3i. You will need the 'RLCAB005-C' cable to connect the two units.

    Learn more

  • Tyre Temperature Monitoring

    You will also need the RACELOGIC tyre temperature sensor kit to use this app. Measure, log and display the surface temperature ...

    Learn more

  • Brake Temperature Monitoring

    You will need the Brake Temperature Sensor kit (RLACS314) to use this app. Monitor the temperature of each brake disc in real-time ...

    Learn more

  • Speed Profiler

    This app is ideal for durability and fuel economy testing. Based on a pre-defined speed profile, it will give visual and audible instructions to a driver ...

    Learn more

  • VPRS Display

    This app works with the VBOX Precision Ranging System (VPRS). It allows the range between two beacons to be displayed and stored.

    Learn more

Revert to standard functionality

If you wish to revert to the standard functionality of the VBOX Touch, you can download the Performance app again, which would have been installed on the device when you first received it. Following the same steps as for upgrading the firmware, you can re-install the app on the VBOX Touch via an SD card.

Community Apps

In response to customer requests, VBOX Automotive have developed a range of Community Apps that provide individual solutions to specific testing needs. These apps are available for all our customers to use, and we are keen to extend the range. If you would like to request additional features to an existing App, or have a requirement for a new Community App, please email .

Please note that Community Apps meet the requirements of the originating customer. However, they did not complete the testing cycle required to be released as a full VBOX Touch App. If you use a Community App, please provide any performance feedback to so that we can continue to improve them for all users.

  • Accel Profiler

    This app is used to guide a test driver to complete a road test, following a user specified, pre-planned test program.

    Learn more

  • Longitudinal Accel Display

    This app displays longitudinal accel/ decel on a graph. It will track max. and minimum values, which can be user reset ...

    Learn more

  • Accel Classifier

    This app can be used to guide a test driver to accelerate or decelerate at specified rates based on their speed. The acceleration classifications ...

    Learn more

  • ADAS Vehicle Separation

    This app is used by a VBOX Touch RTK to calculate separation data between it and another VBOX Touch RTK unit (other unit running Performance App).

    Learn more

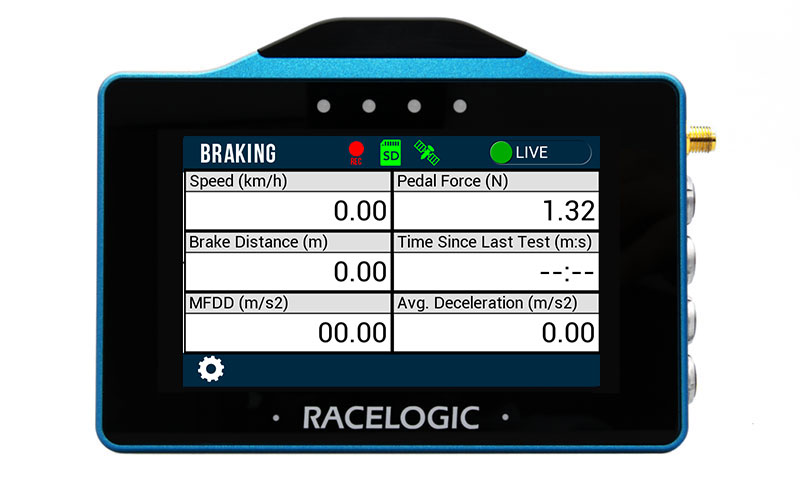

  • Brake Force

    This app uses a Pedal force sensor (RLACS282) connected to the VBOX Touch via a Mini Input module (MIM01) to measure stopping distance from a nominated pedal force to zero.

    Learn more

  • Braking Reaction

    This app uses two triggers to measure the reaction and stopping time/distance of the driver. Once the screen shows ‘READY’ the driver can accelerate to the ...

    Learn more

  • G-Force Meter

    This app is for displaying a G-Ball meter of both lateral and longitudinal G-Force and a combination G Value. In addition, peak lateral G, acceleration and deceleration ...

    Learn more

  • NMEA 2000 Processor

    This app converts NMEA 2000 data into standard CAN data for use with any CAN logger or interpreter, including Racelogic products.

    Learn more

  • OBD PID Requester

    This app is used to capture RPM and throttle position from a connection made to the on-board diagnostics port (OBD II).

    Learn more

  • Event Marker

    This app allows you to mark events within your data file, making post-process analysis faster and more efficient.

    Learn more

Developer Tools

A collection of scripts to help get started in writing code for the VBOX Touch can be downloaded below. Each script demonstrates how to utilise one or more features of the product. Please see the Readme.txt for details of each specific app and how to run each script. For further assistance on writing code for the VBOX Touch, please contact VBOX support.

Download script examples
