Accel Profiler

This app is used to guide a test driver to complete a road test, following a user specified, pre-planned test program.  The test program can include speed, distance and acceleration guidance.

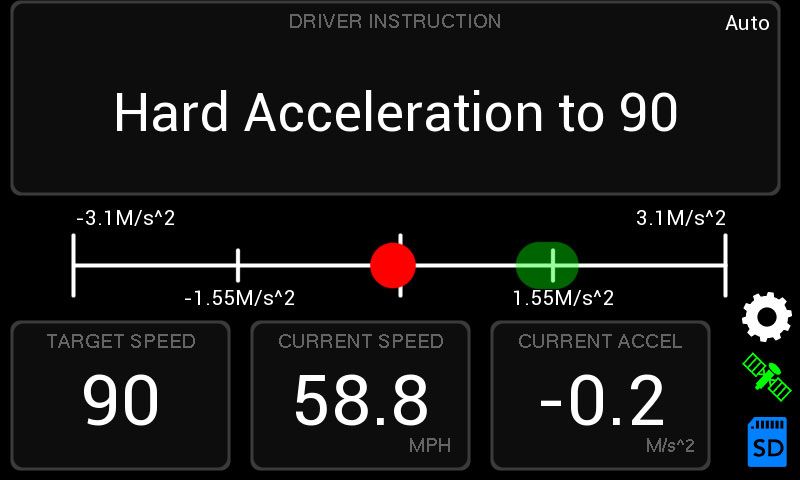

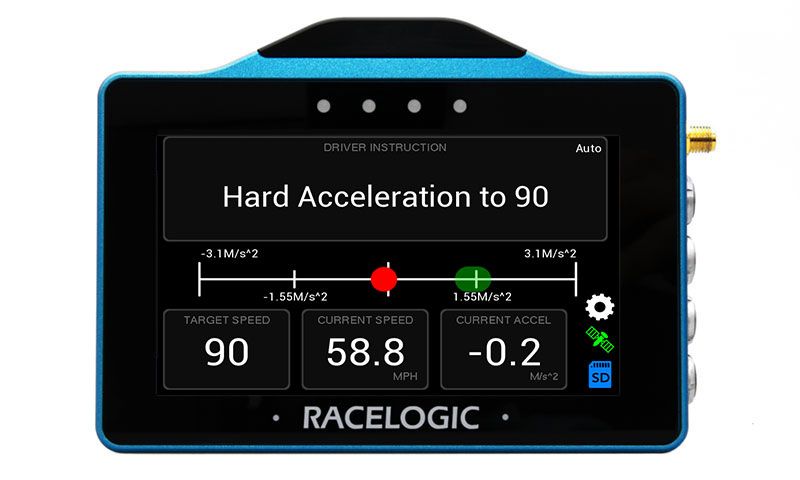

The screen displays current speed and acceleration data, alongside visual targets for both speed and acceleration, relative to the profile.

The display includes a target bar graph with incorporated LED activation to visually guide the driver to match pre-programmed target acceleration.

To use the app, a test profile is required.

1. Download the correct file for your product.
   (Your unit must be registered to receive the required login details for the download. Register here.)
2. Place the .rvf /.rpf file on to the root directory of the SD card (not in the media or any other folder).
3. Insert the SD card into the side panel of the unpowered unit.
4. Power up VBOX Touch/ Performance Box Touch.
5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
6. Once complete, the unit will restart.

Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

The latest version offers support for new VBOX Touch hardware variants.

Previous releases

Community Apps have not completed a full testing cycle and sign off. Users must be aware that the Apps may still contain bugs which can affect results.

If you use a Community App, please provide any performance feedback to so that we can continue to improve them for all our users.

It is your responsibility to make any shared users of the equipment aware that it is running a Community App – e.g. by fixing a temporary label to the unit.
