G-Force Meter App

  • g force

  • settings

  • live

  • peak

  • imu

G-Force Meter

  • Updated: 29 November 2023

  • Version: 1.0.1.34

  • About

    This app is for displaying a G-Ball meter of both lateral and longitudinal G-Force and a combination G Value. The G-Ball is shown on two data screens, each of which contain different supporting data.

    The first screen shows live data, including lateral and longitudinal acceleration, and speed. The second screen shows peak data values, including signed lateral acceleration, and peak longitudinal acceleration and deceleration.

    Peak data values can be easily reset at the press of a button.

    A VBOX IMU can be connected to show measured acceleration data from the inertial sensors. More information available in the 'Using IMU' tab.

    The unit also includes the ability to record a screenshot of the current display at any time, and all data is logged to the SD card in the Racelogic VBO format.

  • Using IMU

    If a VBOX IMU is detected by VBOX Touch, an additional screen will become available that shows the Y and X Accel data measured by the sensor. Data from the IMU will be included in the logged data file.

    To be detected, the IMU must be configured in 'Timed' CAN mode, be set to 500kb/s baud rate, and be using the default output identifiers of 0x600 and 0x601. It can be connected to either 5-pin connection port of the VBOX Touch.

    VBOX Setup software and an RLCAB030-S cable are required to configure the IMU. A configuration file can be found here.

    Note: The PEAK screen will use IMU data to control the G-Ball. The peak acceleration results will be the greatest magnitude achieved from either GNSS or inertial sensor source.

  • How to install?

    1. Download the correct file for your product.
      (Your unit must be registered to receive the required login details for the download. Register here.)
    2. Place the .rvf /.rpf file on to the root directory of the SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up VBOX Touch/ Performance Box Touch.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

  • Release notes

    The latest release adds support for new VBOX Touch hardware variants.

    Full Release notes

  • Important

    Community Apps have not completed a full testing cycle and sign off. Users must be aware that the Apps may still contain bugs which can affect results.

    If you use a Community App, please provide any performance feedback to so that we can continue to improve them for all our users.

    It is your responsibility to make any shared users of the equipment aware that it is running a Community App – e.g. by fixing a temporary label to the unit.

App Store

Read more …G-Force Meter App

  • Last updated on .
  • Hits: 15562

Written on .

Event Marker App

  • Brake Temp

  • wait

  • ready

  • Screenshot of VBOX Test Suite, showing a data file from the app with multiple events.

    The app configuration can be seen in next image (good, minor error & major error).

    Zoom In

Event Marker

  • Released: 29 November 2023

  • Version: 2.0.2

  • About

    This app allows you to highlight events during data capture, making post-process data analysis faster and more efficient.

    It features big buttons on the screen for this purpose, with each press marking an event. These marks are saved in the VBOX data file and also sent to any external logging device through CAN.

    You can mark up to six different types of events by changing the settings in a text file. This is particularly handy when you need to track various kinds of events or if you're using the app for something like a feedback scoring system.

    The app includes other visual indicators for logging status and satellite lock, and also includes a note mode, reducing screen brightness for use in darker environments.

    Simply download the app and the accompanying text config file to an SD card (root directory!) and insert into the unit prior to applying power.

  • Installation

    1. Download the correct zip file for your product.
      (Your unit must be registered to receive the required login details for the download. Register here.)
    2. Place the .rvf /.rpf file and the user script file on the root directory of the SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up VBOX Touch/ Performance Box Touch.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

    Example text configuration file included in download.

  • CAN Output Usage

    You are connecting your CAN devices at your own risk.

    The Customisation.json file contains a section to configure the CAN output.

    • “BAUD RATE” – enter required baud rate, in bps format
    • “TERMINATION” – set termination on VBOX CAN port by changing 0 to 1
    • “CAN ID” – Define CAN output message identifier
    • “PORT” – Define which port the output is on; 0 is the top 5-pin port, 1 is the bottom 5-pin port (next to 2-pin power)

    The provided DBC applies to default CAN output. Message identifier needs updating in correspondence with any ‘CAN ID’ changes.

  • Release Notes

    The latest release adds CAN output functionality and support for new VBOX Touch hardware variants.

    Full release notes

  • Important

    Community Apps have not completed a full testing cycle and sign off. Users must be aware that the Apps may still contain bugs which can affect results.

    If you use a Community App, please provide any performance feedback to so that we can continue to improve them for all our users.

    It is your responsibility to make any shared users of the equipment aware that it is running a Community App – e.g. by fixing a temporary label to the unit.

App Store

Read more …Event Marker App

  • Last updated on .
  • Hits: 5621

Written on .

Accel Profiler App

  • accel profiler

  • hard accel 90

  • hard accel 30 settings

Accel Profiler

  • Released: 29 November 2023

  • Version: 1.1.2.8

  • About

    This app is used to guide a test driver to complete a road test, following a user specified, pre-planned test program.  The test program can include speed, distance and acceleration guidance.

    The screen displays current speed and acceleration data, alongside visual targets for both speed and acceleration, relative to the profile.

    The display includes a target bar graph with incorporated LED activation to visually guide the driver to match pre-programmed target acceleration.

    To use the app, a test profile is required.

  • How to install?

    1. Download the correct file for your product.
      (Your unit must be registered to receive the required login details for the download. Register here.)
    2. Place the .rvf /.rpf file on to the root directory of the SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up VBOX Touch/ Performance Box Touch.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

  • Release notes

    The latest version offers support for new VBOX Touch hardware variants.

    Previous releases

  • Important!

    Community Apps have not completed a full testing cycle and sign off. Users must be aware that the Apps may still contain bugs which can affect results.

    If you use a Community App, please provide any performance feedback to so that we can continue to improve them for all our users.

    It is your responsibility to make any shared users of the equipment aware that it is running a Community App – e.g. by fixing a temporary label to the unit.

App Store

Read more …Accel Profiler App

  • Last updated on .
  • Hits: 5113

Written on .

Vehicle Separation App

ADAS Vehicle Separation

  • Released: 2 February 2023

  • Version: 1.0.0.20

  • About

    This app is used by a VBOX Touch RTK to calculate separation data between it and another VBOX Touch RTK unit (other unit running Performance App).

    Watch video

    The screen displays the current vehicle speed, the speed of the other VBOX (Target), the time to collision between the two, as well as separation range, longitudinal range and lateral range calculations between the vehicles.  The calculated vehicle separation data is logged to an inserted SD card, and also transmitted from the VBOX, via CAN.

    VBOX to VBOX communication radios are required. Please contact for more information.

  • How to install?

    1. Download the .rvf file.
      (Your unit must be registered to receive the required login details for the download. Register here.)
    2. Place the .rvf file onto the root directory of the SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up the VBOX Touch.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

  • Release notes

    The latest version offers support for 25Hz VBOX Touch V2 hardware.

    Previous releases

  • Important note

    Community Apps have not completed a full testing cycle and sign off. Users must be aware that the Apps may still contain bugs which can affect results.

    If you use a Community App, please provide any performance feedback to so that we can continue to improve them for all our users.

    It is your responsibility to make any shared users of the equipment aware that it is running a Community App – e.g. by fixing a temporary label to the unit.

Download

App Store

Read more …Vehicle Separation App

  • Last updated on .
  • Hits: 5627

Written on .

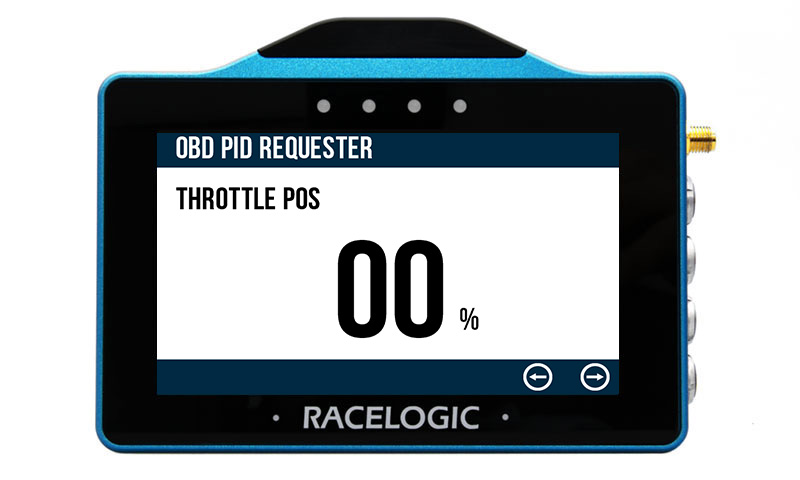

OBD RPM Decoder App

  • mix

  • rpm

  • throttle

OBD PID Requester

  • Released: 9 January 2024

  • Version: 0.10

  • About

    This app is used to capture vehicle engine speed (rpm) data and throttle position from a connection made to the on-board diagnostics port (OBD II). This data is displayed on screen, and re-transmitted via CAN from the top 5-pin port on the VBOX Touch.

    The app and CAN output is ideal to be used by other CAN data loggers that do not support Parameter Identification (PID) requests, to capture vehicle diagnostic information.

    To use the app, a VBOX Touch variant is required. The app is not compatible with MFD Touch or Performance Box Touch hardware.

  • CAN output details

    RPM available in the first 4 bytes of message identifier 0x700.

    Throttle available in the last 4 bytes of message identifier 0x700.

    The data is in a 32 bit floating point format, transmitted at a rate of 500 kbit/s.

    If you would like more parameters added, please email .

  • Release Notes

    Version 0.10 - 9 January 2024

    • Adds support for new hardware variant.

    Full release notes

  • How to install?

    1. Download the .rvf file.
      (Your unit must be registered to receive the required login details for the download. Register here.)
    2. Place the .rvf file onto the root directory of the SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up the VBOX Touch.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

  • Important note

    Community Apps have not completed a full testing cycle and sign off. Users must be aware that the Apps may still contain bugs which can affect results.

    If you use a Community App, please provide any performance feedback to so that we can continue to improve them for all our users.

    It is your responsibility to make any shared users of the equipment aware that it is running a Community App – e.g. by fixing a temporary label to the unit.

Download

App Store

Read more …OBD RPM Decoder App

  • Last updated on .
  • Hits: 6566

Written on .

Brake Force App

  • Main on product

  • test config

  • test config

Brake Force

  • Released: 29 November 2023

  • Version: 1.0.23.85

  • About

    This app uses a Pedal Force Sensor (RLACS282) connected to the VBOX Touch via a Mini Input Module (MIM01) to measure stopping distance from a nominated pedal force to zero.

    The user can specify the pedal force at which the test should start, as well as a minimum speed threshold at which the test will start. The screen displays the current vehicle speed, the current pedal force, the braking distance, the MFDD and the average deceleration of the last completed brake stop. The results from each brake stop are automatically recorded to a text file on the SD card, along with a .vbo file that contains all the VBOX data required for post-processing using the ‘Trigger’ plugin in VBOX Test suite.

    To use this app, the Mini Input Module will need the configuration file for VBOX Touch. You must configure the Mini Input Module timer value to 10ms. The pedal force sensor must be wired into the ‘AN1’ channel of the Mini Input Module and the ‘Voltage_1’ channel must be scaled and offset correctly with the response ID remaining as ID310.

  • How to install?

    1. Download the .rvf file to your PC.
      (The download is password-protected. You must register your unit to receive the required login details. Register here.)
    2. Place the .rvf file on the root directory of the VBOX Touch SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up VBOX Touch.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

  • Release notes

    Version 1.0.23.85 – 29 November 2023

    • Adds support for VBOX Touch hardware variants.

    Full release notes

  • Important!

    Community Apps have not completed a full testing cycle and sign off. Users must be aware that the Apps may still contain bugs which can affect results.

    If you use a Community App, please provide any performance feedback to so that we can continue to improve them for all our users.

    It is your responsibility to make any shared users of the equipment aware that it is running a Community App – e.g. by fixing a temporary label to the unit.

Download for VBOX Touch

App Store

Read more …Brake Force App

  • Last updated on .
  • Hits: 8190

Written on .

NMEA 2000 Processor App

nmea

NMEA 2000 Processor

  • Released: 29 November 2023

  • Version: 0.12

  • About

    This app is used to convert NMEA 2000 data (typically found in marine applications) into standard CAN data for use with any CAN logger or interpreter, including Racelogic products.

    The download includes the firmware to be installed on the VBOX Touch, a DBC file containing the interpreted signals that can be loaded into Racelogic Setup or a CAN logger, and a Readme file containing instructions on how to use the application.

    This app supports the most common signals but not all NMEA 2000 signals. A list of supported signals is provided in the readme file, please contact Racelogic support if you require specific signals not currently included in the app.

  • How to install?

    1. Download the .rvf file.
      (Your unit must be registered to receive the required login details for the download. Register here.)
    2. Place the file on the root directory of the SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up VBOX Touch.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

    The zip file will also contain a DBC file containing the interpreted signals and a 'readme' file with instructions on how to use the app.

    A list of supported signals is provided in the readme file.

  • Release notes

    The latest release adds support for new hardware variants.

    Full release notes

  • Important!

    Community Apps have not completed a full testing cycle and sign off. Users must be aware that the Apps may still contain bugs which can affect results.

    If you use a Community App, please provide any performance feedback to so that we can continue to improve them for all our users.

    It is your responsibility to make any shared users of the equipment aware that it is running a Community App – e.g. by fixing a temporary label to the unit.

Download

App Store

Read more …NMEA 2000 Processor App

  • Last updated on .
  • Hits: 6909

Written on .

Accel Classifier App

  • Brake Temp

  • wait

  • ready

  • brake

Accel Classifier

  • Released: 29 November 2023

  • Version: 1.0.11

  • About

    This app can be used to guide a test driver to accelerate or decelerate at specified rates based on their speed. The acceleration classifications can be adjusted easily by modifying a configuration file installed on the SD Card.

    Accel/Decel can be classified as light, moderate or hard, with the current classification being indicated both on the screen and by the illumination of the LEDs.

  • How to install?

    1. Download the correct file for your product.
      (Your unit must be registered to receive the required login details for the download. Register here.)
    2. Place the .rvf /.rpf file on to the root directory of the SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up VBOX Touch/ Performance Box Touch.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

  • Release notes

    The latest release offers support for new VBOX Touch hardware variants.

    Previous releases

  • Important!

    Community Apps have not completed a full testing cycle and sign off. Users must be aware that the Apps may still contain bugs which can affect results.

    If you use a Community App, please provide any performance feedback to so that we can continue to improve them for all our users.

    It is your responsibility to make any shared users of the equipment aware that it is running a Community App – e.g. by fixing a temporary label to the unit.

App Store

Read more …Accel Classifier App

  • Last updated on .
  • Hits: 6683

Written on .

Braking Reaction App

  • Brake Temp

  • wait

  • ready

  • brake

  • results

Braking Reaction

  • Released: 29 November 2023

  • Version: 1.12

  • About

    This app uses two triggers, a Logging Start/Stop Switch (RLVBACS010) and a pedal mounted trigger, to measure the reaction and stopping time/distance of the driver.

    Once the screen shows ‘READY’ the driver can accelerate to the desired speed or location and then the assessor can start the test at any point by pressing the handheld trigger.

    The driver is then instructed to ‘BRAKE’ and then to ‘STOP’. Once the vehicle has come to a stop, the results are shown on the screen and recorded to the SD card.

    Reaction, braking and total stopping times/ distances are shown and are recorded to an CSV file, as well as the vehicle speeds at the start of test and at braking. There's a minimum start speed of 20 km/h.

  • How to install?

    1. Download the correct file for your product.
      (Your unit must be registered to receive the required login details for the download. Register here.)
    2. Place the .rvf /.rpf file on to the root directory of the SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up VBOX Touch/ Performance Box Touch.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

  • Release notes

    The latest release offers support for new VBOX Touch hardware variants.

    Previous releases

  • Important!

    Community Apps have not completed a full testing cycle and sign off. Users must be aware that the Apps may still contain bugs which can affect results.

    If you use a Community App, please provide any performance feedback to so that we can continue to improve them for all our users.

    It is your responsibility to make any shared users of the equipment aware that it is running a Community App – e.g. by fixing a temporary label to the unit.

Download for VBOX Touch

App Store

Read more …Braking Reaction App

  • Last updated on .
  • Hits: 7352

Written on .

VBOX Precision Ranging System Display App

  • Brake Temp

  • range to beacon

  • sensore settings 2

  • data export

VBOX Precision Ranging System Display

  • Released: 29 November 2023

  • Version: 1.2.6

  • About

    This app works with the VBOX Precision Ranging System (VPRS). It allows the range between two beacons to be displayed and stored.

    The display can be zeroed and reset at any time, allowing any offsets to be easily accounted for. The current range can be stored at the press of a button, and then all results can be displayed and saved to a text file.

  • How to install?

    1. Download the correct file for your product.
      (Your unit must be registered to receive the required login details for the download. Register here.)
    2. Place the .rvf file on to the root directory of the SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up VBOX Touch/ Performance Box Touch.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

  • Release notes

    Adds support for new hardware variants.

    See full release notes

Download for VBOX Touch

App Store

Read more …VBOX Precision Ranging System Display App

  • Last updated on .
  • Hits: 6737

Written on .

Longitudinal Acceleration Display App

  • Brake Temp

  • sensor settings 1

  • sensore settings 2

Longitudinal Acceleration Display

  • Released: 29 November 2023

  • Version: 1.0.12

  • About

    This app is for displaying longitudinal acceleration/deceleration on a graph. It will track maximum and minimum values, which can be reset by the user. All data is logged to a VBO file and the user can also set their preferred units and customise the scale of the graph.

  • How to install?

    1. Download the correct file for your product.
      (Your unit must be registered to receive the required login details for the download. Register here.)
    2. Place the .rvf /.rpf file on to the root directory of the SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up VBOX Touch/ Performance Box Touch.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

  • Release notes

    The latest release offers support for new VBOX Touch hardware variants.

    Previous releases

  • Important note

    Community Apps have not completed a full testing cycle and sign off. Users must be aware that the Apps may still contain bugs which can affect results.

    If you use a Community App, please provide any performance feedback to so that we can continue to improve them for all our users.

    It is your responsibility to make any shared users of the equipment aware that it is running a Community App – e.g. by fixing a temporary label to the unit.

App Store

Read more …Longitudinal Acceleration Display App

  • Last updated on .
  • Hits: 7890
