Our latest video logger, the VBOX Video HD2, features 1080p 30fps video, synchronised video and data, and real-time graphical overlay.

  • 25 Hz GPS receiver
  • Synchronised data and HD video
  • Up to 80 CAN channel inputs
  • Live-streaming of data and video from the test track

Which Video data logger is right for you?

VBOX Video data loggers are used by automotive manufacturers and proving grounds for a wide range of applications. We offer different solutions, from the four-camera system Video VBOX Pro, to our flagship VBOX Video HD2, which offers synchronised HD video and GPS data, as well as the option for live-streaming to engineers working remotely.

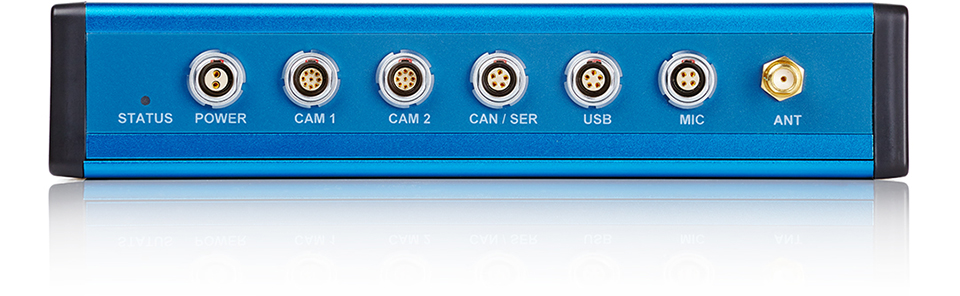

VBOX Video HD2

  • 25 Hz GPS receiver
  • Up to 2 camera inputs
  • 1920 x 1080p at 30fps video
  • Log up to 80 CAN signals
  • Real-time HD graphic overlay
  • HDMI for live video streaming

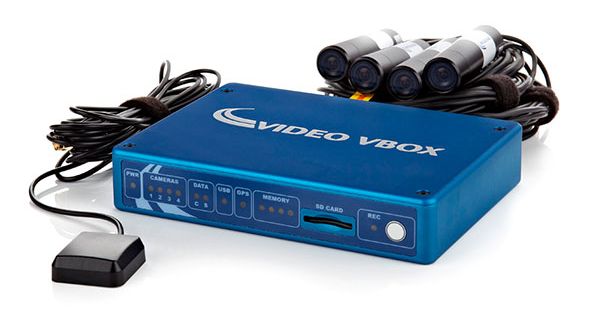

Video VBOX Pro

  • 10 or 20 Hz GPS receiver
  • Up to 4 camera inputs
  • DVD quality video at 25 (PAL) or 30 (NTSC) fps
  • Log up to 32 CAN signals
  • Real-time graphic overlay
  • Robust aluminium enclosure

Key Features


High Accuracy GPS

10, 20 or 25 Hz GPS engines provide accurate measurements of position and speed, to within ±0.1 km/h.

CAN Bus Input

Log up to 80 channels of vehicle CAN data, such as throttle angle, RPM, and brake pressure (HD2).

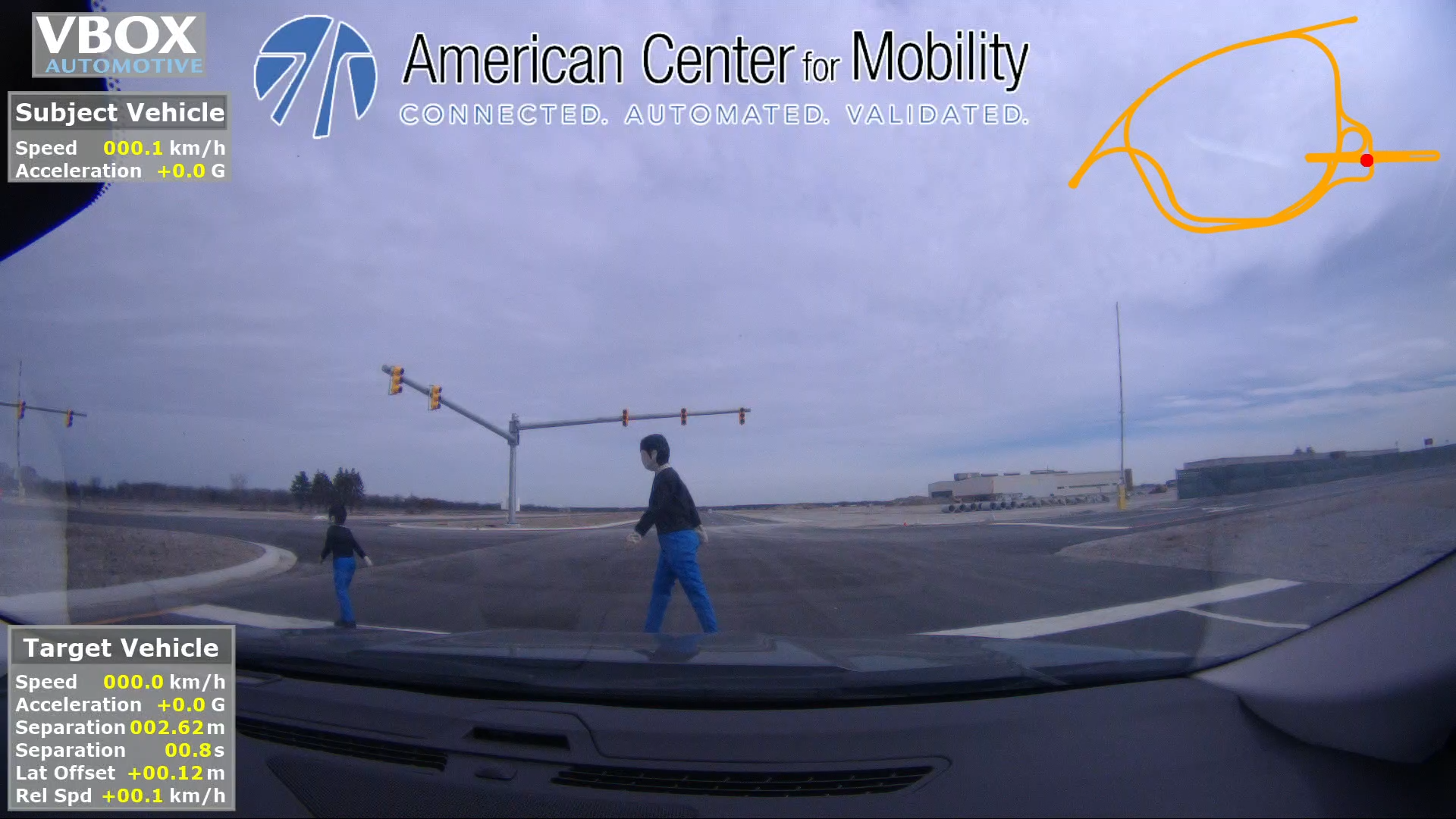

Graphic Overlay

Measured parameters can be graphically overlaid in real-time onto the recorded video, providing a visual reference to the test.

HD Video Quality

Sony Exmor™ HD sensor gives superb colour reproduction and great night sensitivity (HD2 only).

Free Lifetime Support

Benefit from comprehensive support and software updates at no additional cost for the entire lifetime of your VBOX product.

HDMI Option

Live stream video to an HDMI compatible monitor, recorder or streaming device like LiveU Solo. (HD2 only)

Power Backup

Keeps logging even when power is lost for a period of up to 10 seconds, ensuring that no data loss or corruption occurs.

Free Analysis Software

Analyse your data with synchronised video footage in VBOX Test Suite, our user-friendly, intuitive data analysis software.

Applications


ADAS Testing

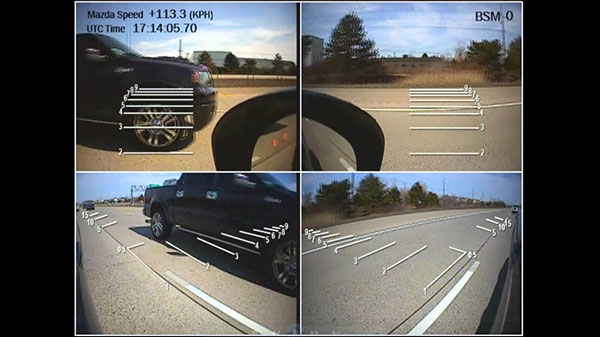

See the exact moment that a vehicle crosses the line when validating the accuracy of Lane Departure Warning or Blind Sport Detection systems, with up to four cameras. VBOX Video data loggers are also ideal for Park Assist testing, providing a visual reference to the kerb.

Brake & Tyre Testing

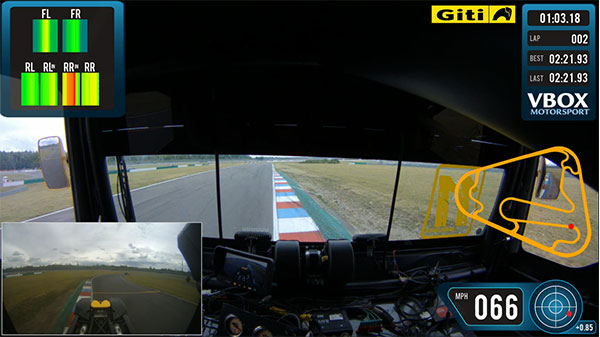

The VBOX Video HD2 is compatible with the VBOX Tyre Temperature Monitoring System. Measure, log and display the surface temperature of up to four tyres with heat maps overlaid in real-time on the video, making it easy to evaluate tyre performance.

Handling & Dynamics

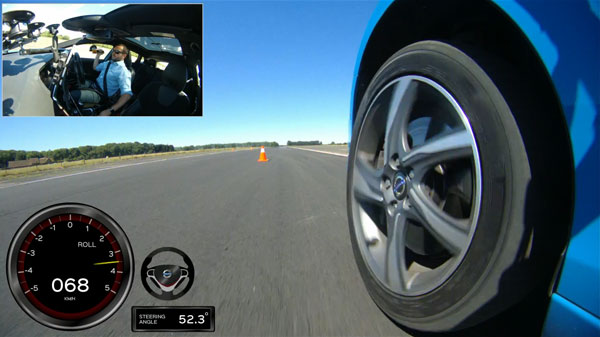

See what is happening inside and outside the vehicle at any given time. See the full picture and understand the exact path or behaviour of a vehicle during any application, making use of synchronised video and data.

Real-time Graphic Overlay

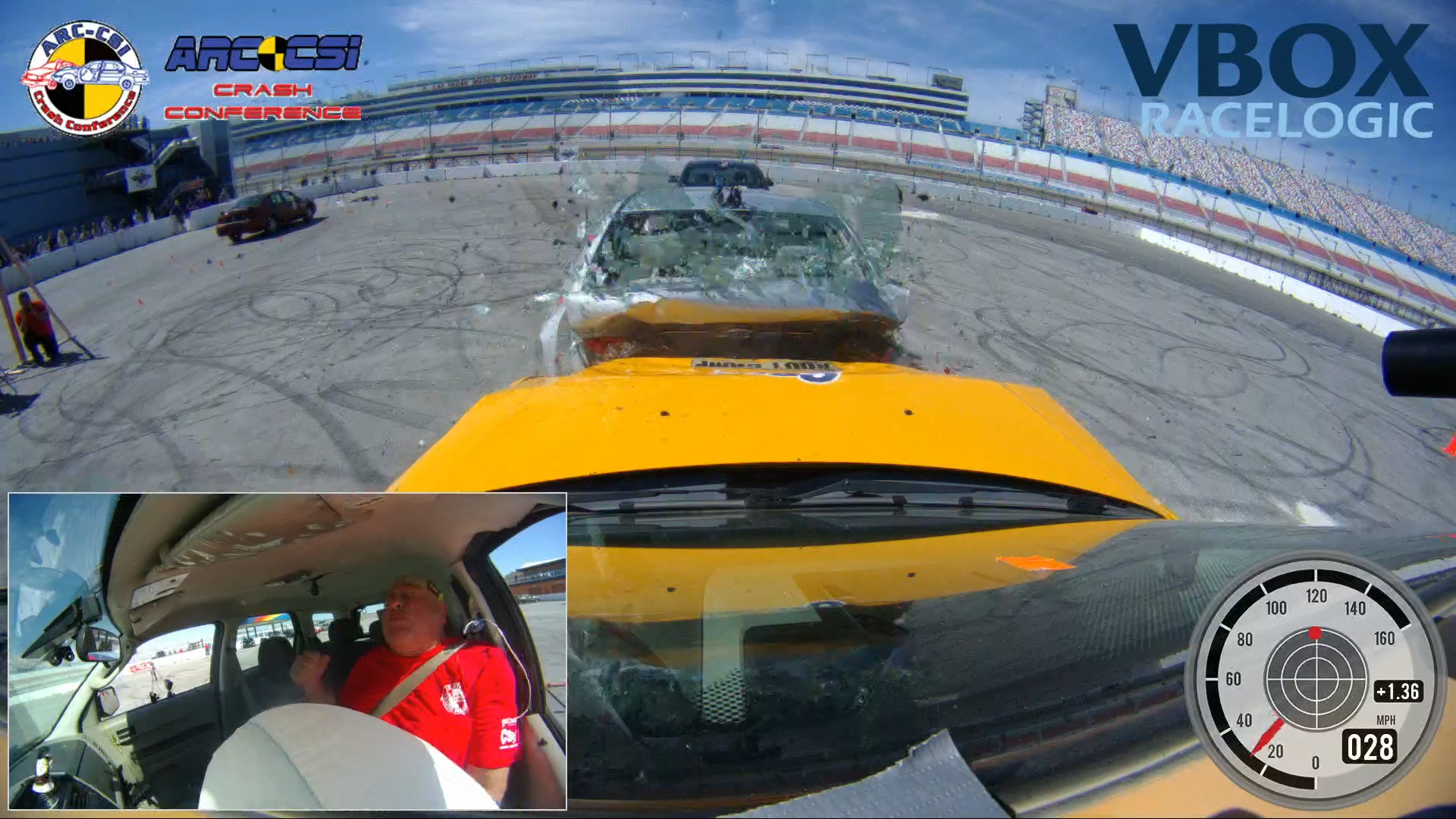

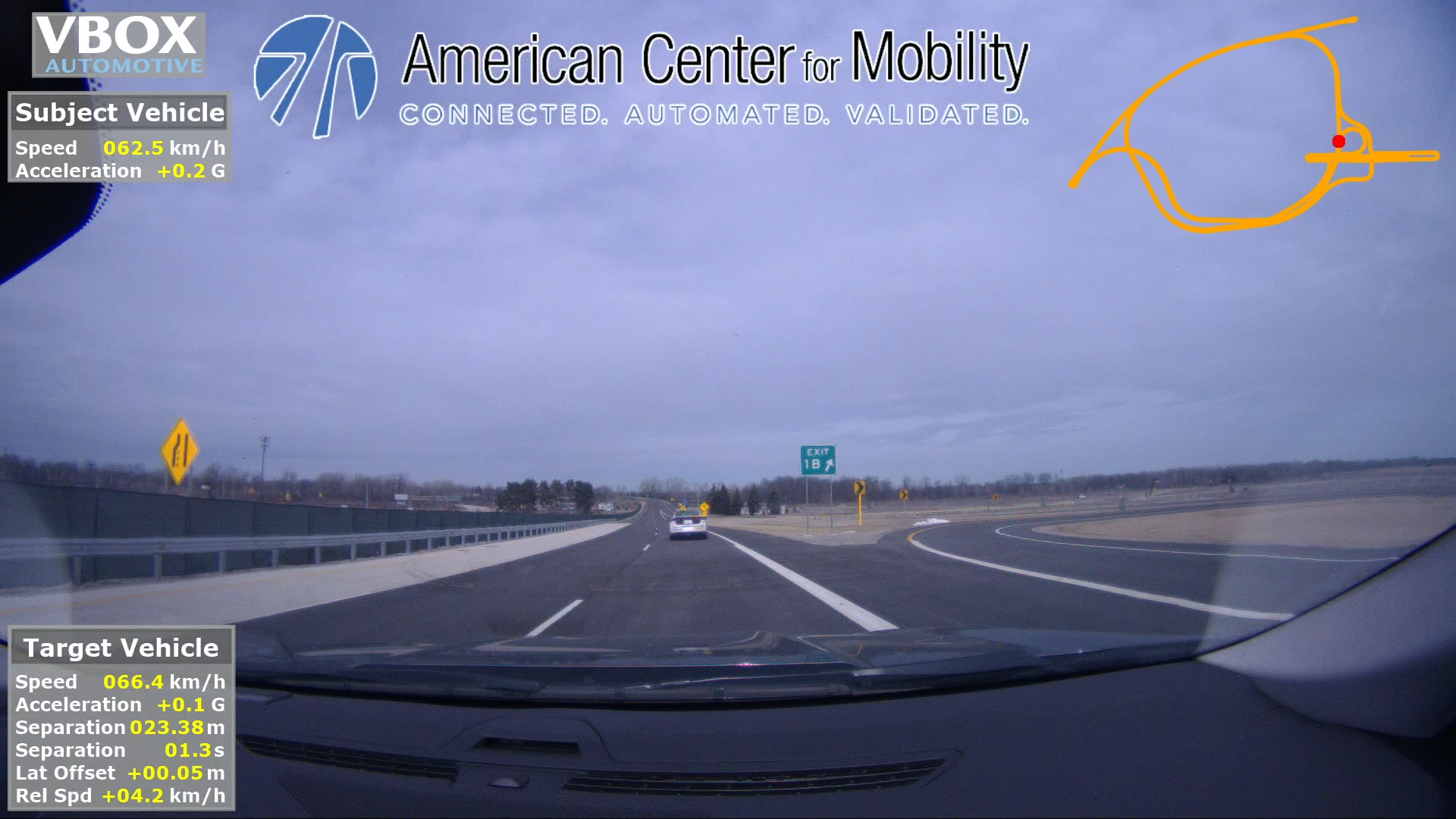

RACELOGIC's range of in-car camera systems are fully synchronised and embed a real-time graphical overlay on your video, allowing you to instantly analyse your performance and pinpoint areas for improvement.

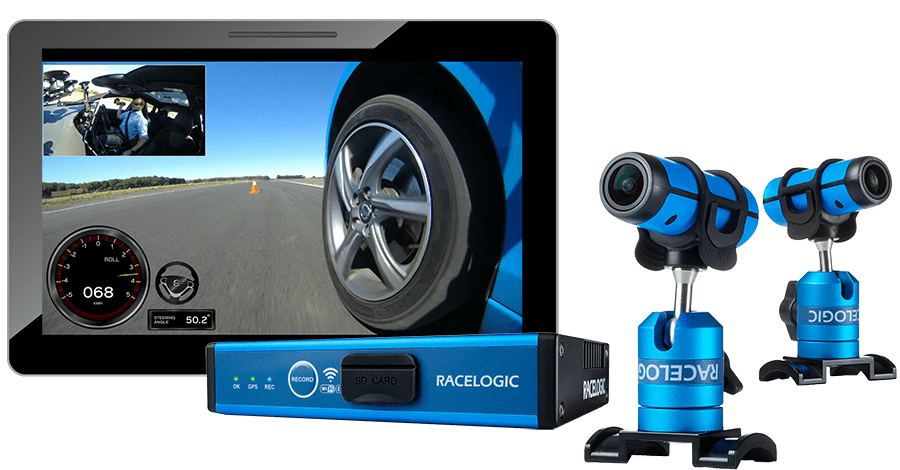

VBOX Video HD2

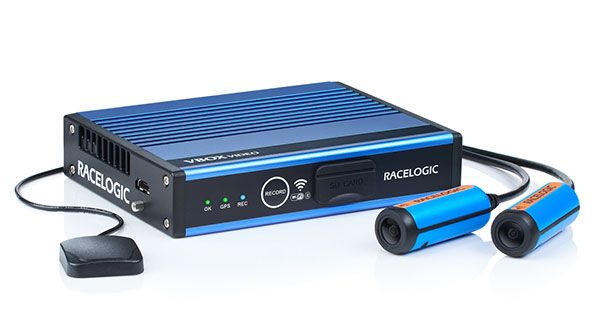

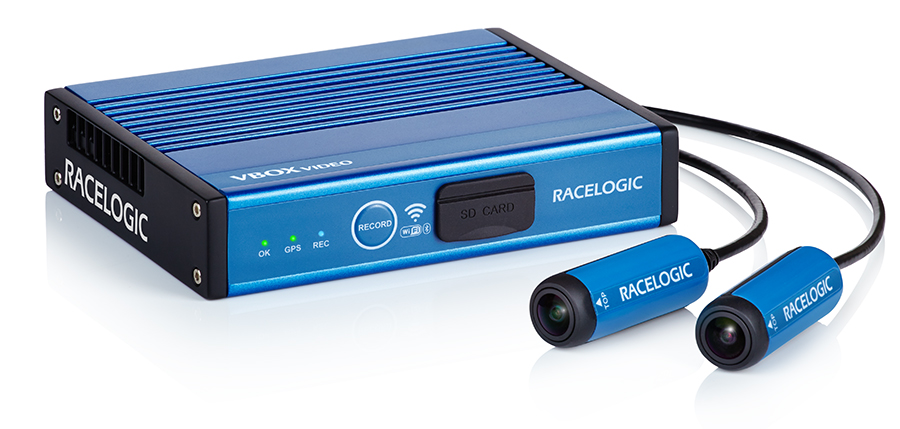

The VBOX Video HD2 is our most advanced video data logger and can record in Full HD at 30 frames per second. It is also available with dual cameras and can log up to 80 vehicle CAN channels.

If you need to log more than 32 CAN channels, then the VBOX Video HD2 might be the best data logger for you. It is extremely popular with OEMs, automotive engineering departments and proving grounds, as the VBOX Video HD2 is available with one or two cameras, that can be mounted inside or outside the vehicle.

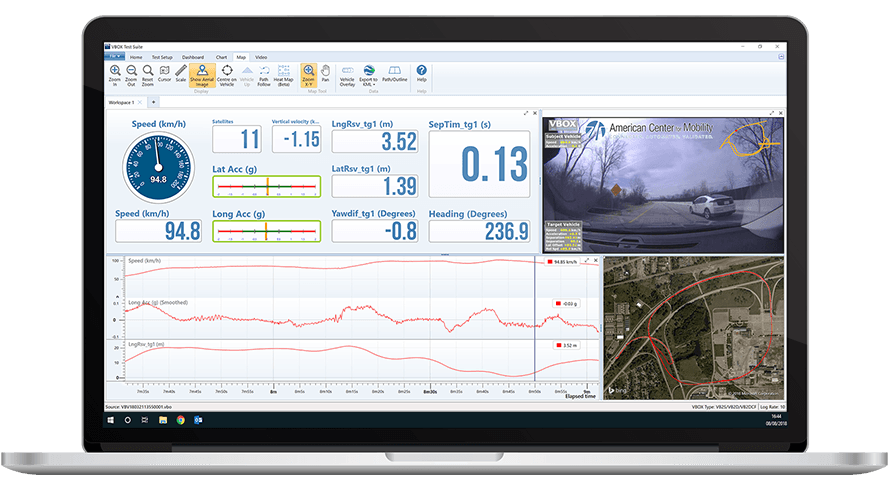

Synchronised video and data can make it easier to understand the dynamics and behaviour of a vehicle during a specific test. You can simultaneously play back your video footage in VBOX Test Suite and analyse your data in charts and tables, and even share what you see on your screen with colleagues.


Live streaming to remote engineers

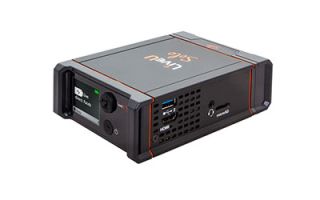

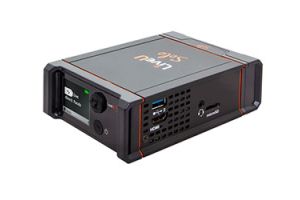

The VBOX Video HD2 is available with an HDMI option, allowing you to stream real-time video and audio to an HDMI compatible monitor, recorder or streaming device such as LiveU Solo.

Live footage can be shared with engineers or departments working remotely. This is particularly useful when only a limited number of people are allowed in the test vehicle, or if you are collaborating with other departments around the world.

Live-streaming can save valuable time, as a team of remote engineers can see what is happening in real-time and share feedback with the test driver using radios or telematics equipment.



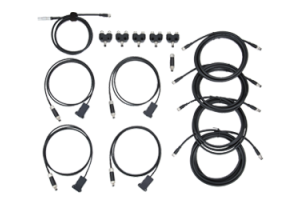

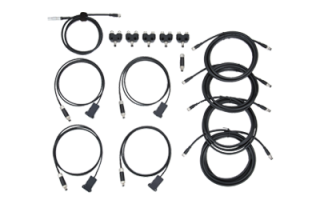

Tyre Temperature Monitoring

The VBOX Video HD2 can also be used in conjunction with the RACELOGIC tyre temperature monitoring sensors, making it easy to measure, log and display the surface temperature of all four tyres in real-time.

Data can be recorded by the VBOX Video HD2 data logger and heat maps are overlaid in real-time on the video. The sensors offer 120° FOV and each sensor can measure up to 16 temperature points on a tyre, with surface temperatures ranging from -20 °C to 300 °C.

As this information is available on the video, it is extremely easy to interpret and see exactly what is happening on the test track.

VBOX Test Suite

Our user-friendly, intuitive data analysis software comes pre-loaded with application specific plugins and features a customisable layout, so you can see video from multiple cameras side-by-side.

  • Over 25 application specific plugins
  • Play video from multiple VBOX cameras
  • Live and post-event data analysis
  • Create your own custom tests
  • Customisable layout
  • Analyse data sets simultaneously

Technical Specifications


Please note that all specifications refer to the latest version of hardware.

Velocity

Accuracy
0.1 km/h (averaged over 4 samples)
Units
km/h or mph
Maximum velocity
1600 km/h
Minimum velocity
0.1 km/h
Resolution
0.01 km/h

Velocity

Accuracy
0.1 km/h (averaged over 4 samples)
Units
km/h or mph
Maximum velocity
1600 km/h
Minimum velocity
0.1 km/h
Resolution
0.01 km/h

Velocity

Accuracy
0.1 km/h (averaged over 4 samples)
Units
km/h or mph
Maximum velocity
1800 km/h
Resolution
0.01 km/h
Update rate
25 Hz

Distance

Accuracy
0.05 % (<50 cm per km)
Units
m or ft
Resolution
1 cm

Acceleration

Accuracy
1%
Maximum
4 g
Resolution
0.01 g

Heading

Accuracy
0.1°
Resolution
0.01°

Heading

Accuracy
0.3°
Resolution
0.01°

Absolute Positioning (2D)

Accuracy (Standalone)
V: 0.6 m*
Accuracy with SBAS
V: 0.3 m*

*95% CEP. Specifications will vary depending on the number of satellites used, obstructions, satellite geometry (PDOP), multipath effects, and atmospheric conditions. For maximum system accuracy, always follow best practices for GNSS data collection.

Absolute Positioning

Accuracy (Standalone)
V: ±3 m; H: 10 m*

*Specifications will vary depending on the number of satellites used, obstructions, satellite geometry (PDOP), multipath effects, and atmospheric conditions. For maximum system accuracy, always follow best practices for GNSS data collection.

Absolute Positioning

Accuracy (Standalone)
V: ±2 m; H: 10 m TBC*

*Specifications will vary depending on the number of satellites used, obstructions, satellite geometry (PDOP), multipath effects, and atmospheric conditions. For maximum system accuracy, always follow best practices for GNSS data collection.

Environmental

Operating Temp. Recorder
0 to 65°C
(for temperatures of 50-65°C the Harsh Environment Fan Accessory is recommenced)
Operating Temp. Camera
-10°C to 60°C
IMPORTANT: The ambient operating temperature should not exceed 65°C.
Storage Temperature
-20°C to +85°C

Environmental

Operating Temperature
-10°C to 60°C
Storage Temperature
-40°C to +85°C

Electrical

Input Voltage
8-30 V DC
Power
25 W Max

Electrical

Input Voltage
9-15 V DC
(12 V minimum required for recording)
Power
7.5 W Max

Physical

Dimensions
172 x 132 x 36 mm
Weight
870 g

Physical

Dimensions
170 x 122 x 33 mm
Weight
700 g

Video

Resolution
1920 x 1080p at 30 frames/second
Field of View
148° horizontal, 86° vertical, 163° diagonal
Camera specs
See here

Video

Resolution Options
DVD 720 x 576 at 25 frames/second PAL (default)
DVD 720 x 480 at 30 frames/second NTSC
Camera Specs
See here

View all specifications for VBOX Video HD2

View all specifications for Video VBOX Pro (20 Hz)

View all specifications for Video VBOX Pro (10 Hz)


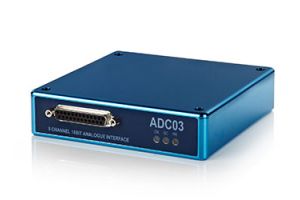

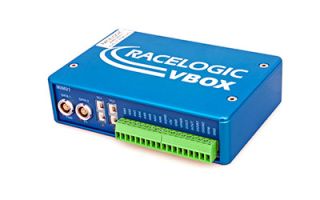

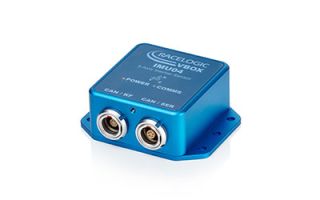

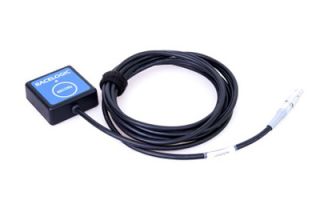

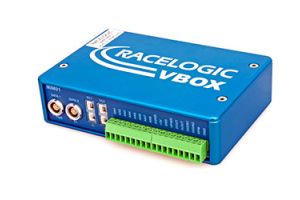

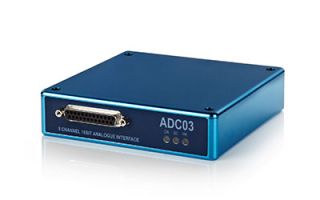

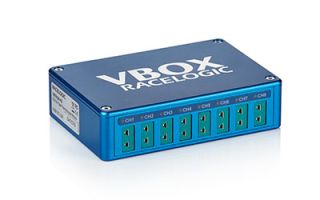

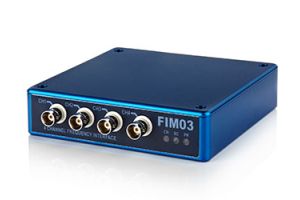

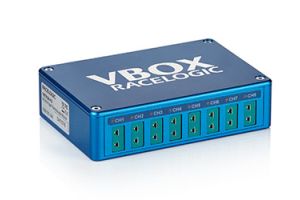

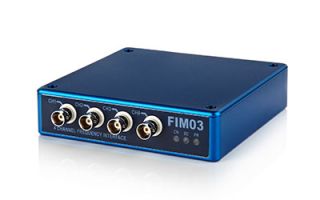

Add-ons and Accessories

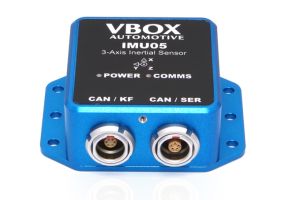

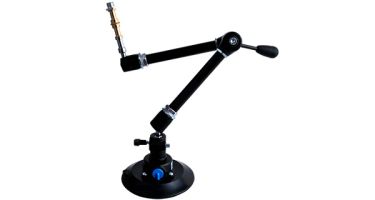

Camera Mounting Arm

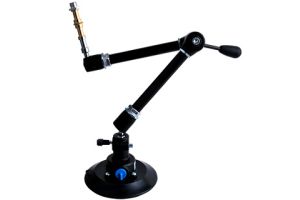

This sturdy adjustable mounting arm allows you to place the cameras inside and outside the vehicle.
