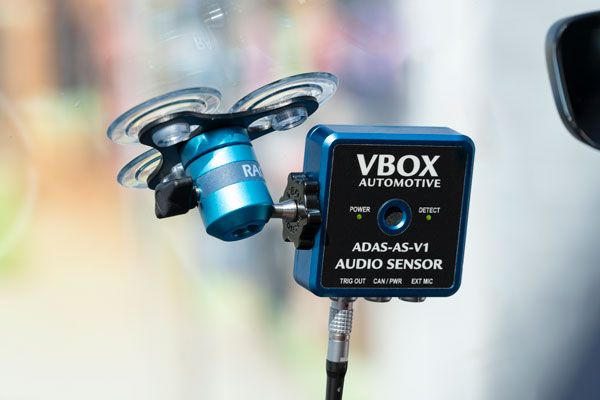

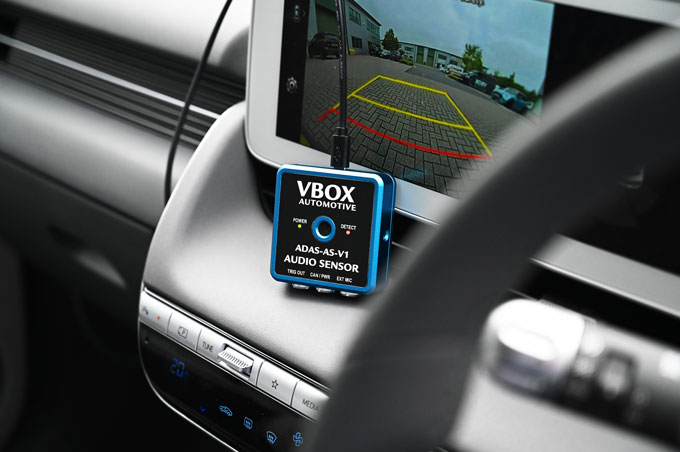

VBOX Audio Sensor
The VBOX Audio Sensor is a highly accurate tool for detecting audible warnings and information functions within a test vehicle, including those used in Forward Collision Warning (FCW), Driver Status Monitoring (DSM), Seat Belt Reminder (SBR), and Safe Exit Assist scenarios.
Designed for seamless integration with VBOX data loggers and third-party driving robots, it captures warning tones with sub-3ms accuracy. The sensor is user-configurable via VBOX Test Suite to trigger on specific frequencies while filtering out environmental noise, and includes both integrated and external microphones to suit different test environments.
Features
- ≤3 ms (1σ) signal accuracy with fixed delay compensation
- Filters out background noise using configurable frequency thresholds
- Supports single or multi-frequency detection with flexible trigger logic
- Built-in and external microphones for varied environments
- Real-time CAN and 0–5 V digital outputs with latency data
- User-defined fixed delay to minimise internal variation
- Quick configuration via setup software with automatic delay handling
- Status LEDs for detection confirmation
- 5 mm mounting thread for secure in-vehicle installation

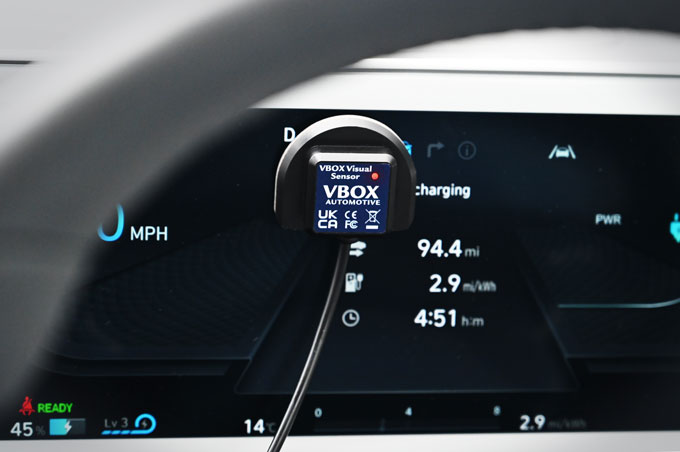

VBOX Visual Sensor

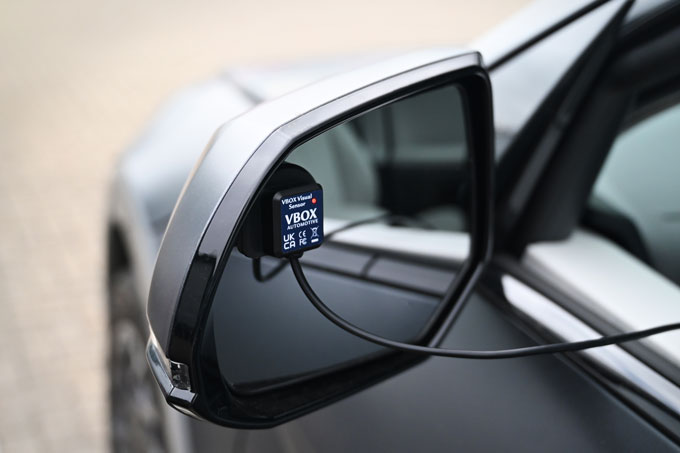

The VBOX Visual Sensor records visual alerts and information related to Forward Collision Warning, Blind Spot Monitoring, and Safe Exit Assist/ Dooring scenarios.
These visual warnings can be either sent to a VBOX for an instant pass/fail assessment based on the specific scenario, or directly transmitted to a driving robot for real-time response to the warning.
The VBOX visual sensor is one of several warning detection methods offered by VBOX to meet the requirements of UNECE, Euro NCAP, and developmental needs. It can work alongside or independently of other ADAS sensors.
Features
- Triggers the onset of a visual warning or information function given by the test vehicle
- Compatible with Pulse Width Modulated warning LEDs
- Integrated repeater LED for visual confirmation when covering the warning
- Digital output (0-5 V/ open drain compatible)
- Flange casing for easy mount on flat surfaces

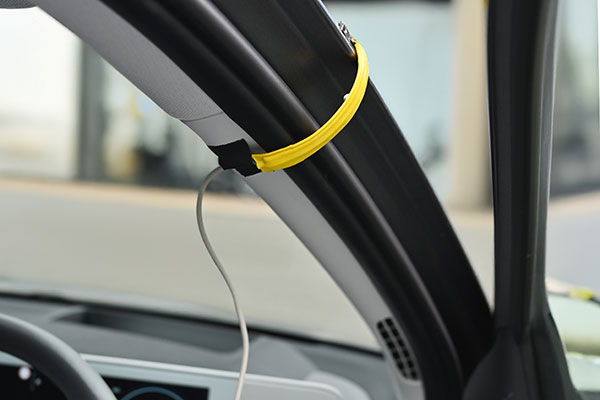

Door Event Trigger Sensor
The VBOX Door Event Trigger Switch is a compact, highly responsive sensor designed for detecting vehicle door status with precision and reliability. Ideal for automotive testing and validation environments, it offers a non-invasive way to log door open/close events in real time.
The Trigger Switch is a key component of the VBOX Dooring solution, integrating seamlessly with VBOX and third-party data loggers. It provides a definitive digital signal whenever a vehicle door is opened or closed, ensuring reliable results during consumer and development testing.
Features

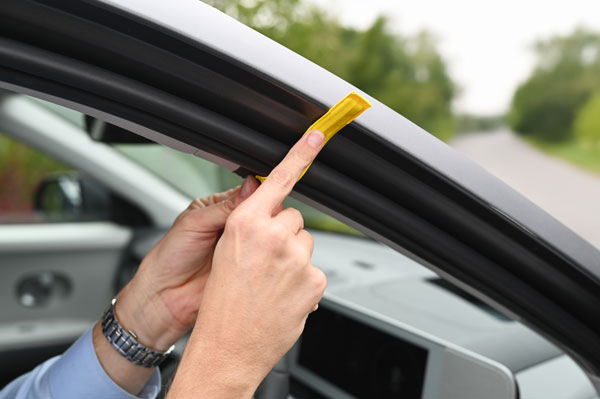

- Simple Integration – Installs easily between door and body with no permanent modifications.
- Digital Output – Provides a clear 0 V (closed) / supply voltage (open) signal for logging.
- Robust & Flexible – Slim, flexible design fits a wide range of door seals and geometries.
- Real-Time Feedback – Delivers instant status updates with VBOX Test Suite.
- Versatile Application – Detects door, bonnet, boot, or other panel movements.

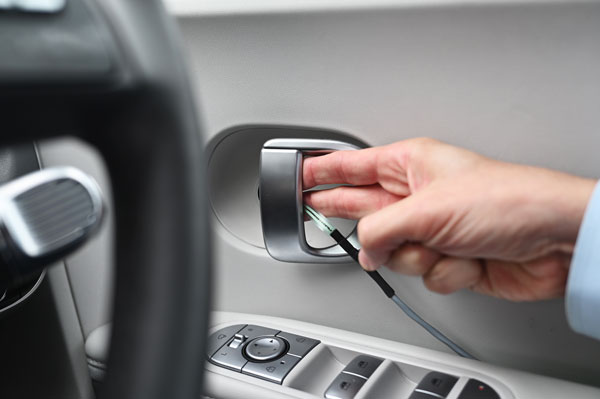

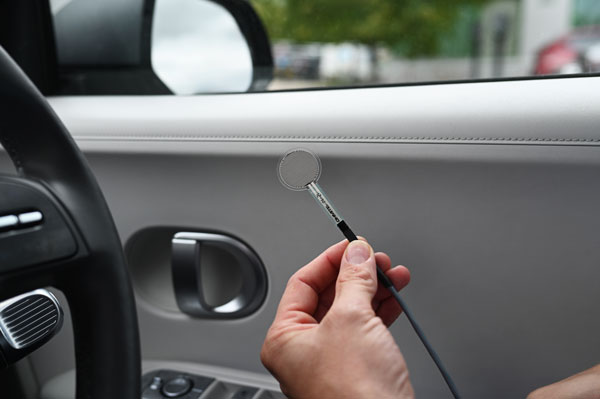

Door Handle Force Sensor
The VBOX Door Handle Force Sensor accurately measures both the activation force and the change in force applied to vehicle door handles and operating mechanisms.
This highly sensitive sensor provides a voltage output proportional to the input force, offering invaluable data for the Euro NCAP ‘Dooring’ assessment. The measured force can be directly mapped to user-defined testing requirements such as ‘Toperate’, ‘TLatch’ and ‘Topen’.
Features
- Precise Force Measurement – Outputs voltage directly proportional to applied force for accurate analysis.
- User-Definable Thresholds – Define Toperate, Tlatch, and Topen force points for detailed Dooring evaluation.
- Simple Integration – Easily attaches to handles or mechanisms and connects to analogue inputs.
- Robust & Reliable – Durable, repeatable performance with a replaceable sensor pad.
- Real-Time Feedback – Instant results when used with VBOX Test Suite.
