Sensors

For those who need a high accuracy speed signal, steering angle or tyre temperature data to augment an existing testing setup, we provide a range of sensors that connect via CAN, digital, or analogue interface to your own data logging equipment.

ADAS Sensors

Outputs directly to VBOX data logger or driving robot for live reaction to warnings.
Meets compliance standards for UN ECE, Euro NCAP and development testing.
Digital output (0-5 V / open drain compatible)

Steering Wheel Sensor

CAN/ Analogue output for DAQ connection
3 sensor variants, 50, 100 & 200 Nm torque
Steering angle resolution 0.1°
Meets ECE R79, ISO 4138 and ISO 7401 test standards
ISO 17025 calibration option
No interference with vehicle’s steering wheel controls

Pedal Force Sensor

Measures the load applied to a brake, accelerator or clutch pedal
Low-profile design & large contact area
Measurement range: 0.5 - 150 kg (1470.99 N)
High overload protection (150% of FS)
Compliant with SAE J2909 & ECE regulation 13-H

Speed Sensors

25 Hz or 100 Hz GNSS receiver
Brake trigger input
RS232/ CAN bus output
User configurable digital outputs
Dust & waterproof

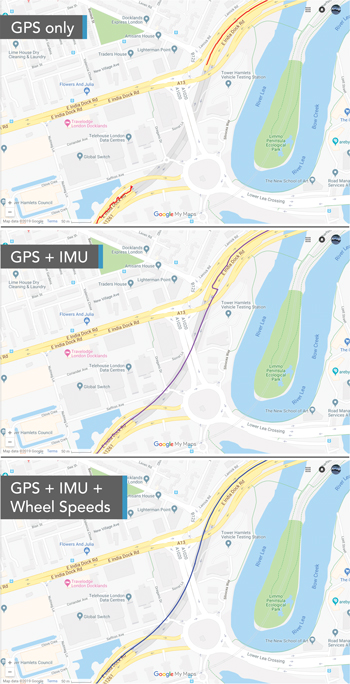

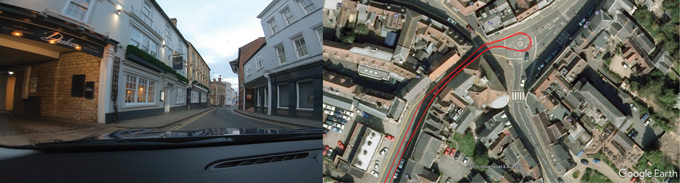

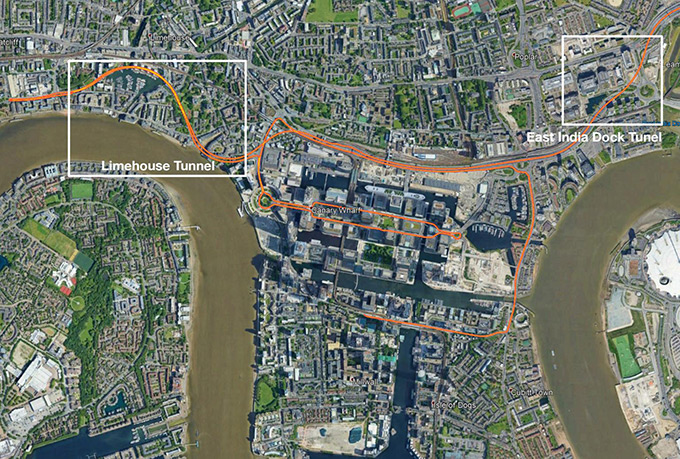

VBOX 3iS/3iSDR (INS)

100 Hz GPS/GLONASS receiver
Internal Inertial Measurement Unit
CAN bus wheel speed data integration
Pitch and roll angles with IMU integration
± 1.8 cm Brake stop accuracy
RS232/ CAN bus/ Ethernet
<1 cm position accuracy with RTK

Tyre Temperature Sensors

16 temperature points per sensor
Wide temperature range
Compatible with VBOX Video & Touch
Live temperature display when used with VBOX Touch

Brake Temperature Sensors

16 temperature points per sensor
Wide temperature range
Compatible with VBOX Video & Touch
Live temperature display when used with VBOX Touch

IMU05 / IMU05-S

2°/h or 0.8°/h bias drift
±450°/s angular rate range in each axis
±4/10 g acceleration range in each axis
Internal temperature compensation
2.5 x 10^-10 °/s angular rate resolution
5x10^-14 g or 6x10^-13 g accel resolution
