Mini Input Module

A general purpose input/output module that allows you to record additional analogue, digital and thermocouple data.

  • 8 analogue inputs
  • 2 digital inputs
  • 2 K-type thermocouple inputs
  • RPM engine speed input
  • Wheel speed input
Get a quote
Download datasheet

How does it work?

The Mini Input Module (RLVBMIM01) is a general purpose input/output module designed for use by either the VBOX Mini or existing VBOX products.

The Mini Input Module allows data such as temperature, RPM, wheel speed, fuel flow, throttle angles and pedal forces to be easily measured along with the VBOX GPS data.

The module can accept 8 analogue inputs, 2 digital inputs, an additional digital state input for use as an event marker, and 2 K-type thermocouple inputs.

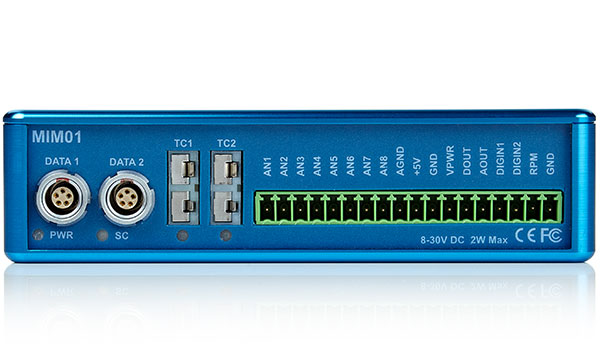

When used in conjunction with a VBOX Mini, the Mini Input Module can also output one digital and one analogue signal. Connections are via a removable screw terminal.

Technical Specifications

Analogue Inputs

Channels
8
Input Range
0-13.8 V
Voltage Resolution
1.06 mV

Digital Inputs

Channels
2
Input Voltage
Input 1: 30 V DC
Input 2: ±40 V DC
Input Frequency Range
1 Hz to 10 KHz

RPM Input

Input Type
Low tension coil signal
Input Frequency Range
0 to 1000 Hz
Resolution
0.1 RPM

Thermocouple Inputs

Channels
2
Thermocouple Type
K-Type
Input Range
0 to 1024°C
Resolution
0.25°C

Power

Input Voltage Range
6–30V DC
Power
Typically 1.5 Watts

Environmental

Operating temperature
-30°C to +60°C
Storage temperature
-40°C to +85°C

Physical

Weight
approx. 500 g
Size (W x L x H)
119 x 128 x 30 mm
