VBOX IISX
5-20 Hz GPS Data Loggers

With 5 Hz, 10 Hz, and 20 Hz GPS update rate options available, the range suits a variety of requirements and budgets.

  • 5, 10, or 20 Hz update rate
  • High contrast OLED screen display & buttons for basic configuration
  • Connects to all VBOX input modules
  • Measure slip angle, pitch/roll angle and heading

Key Features

5-20 Hz Update rate

VBOX IISX is available in different update rates. Choose your update rate to fit your budget and requirements.

CAN Bus Input

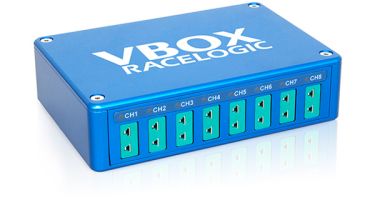

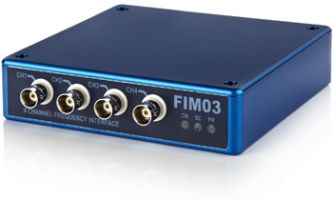

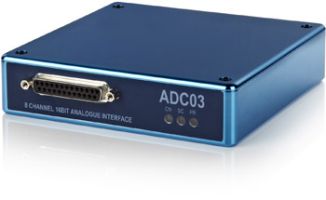

Log up to 16 vehicle CAN parameters, or connect to external modules like the Thermocouple Interface, Frequency Input Module, and Analogue Input Module.

Brake Trigger

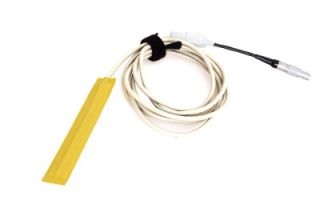

By using a physical switch on the brake pedal, a precise start of the 'braking event' can be captured. This is required to get true stopping distance with ±10 cm accuracy.

OLED Screen Display

VBOX II SX features a high contrast OLED screen display and buttons for basic configuration without a PC.

Real-time Testing

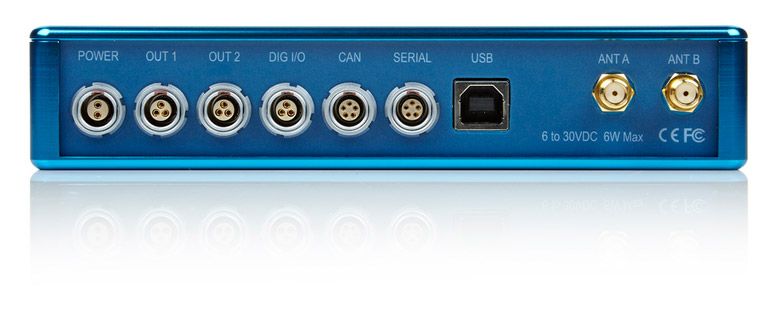

Connects to a laptop or tablet via USB or Serial, making it easy to test in real-time, directly from the test vehicle.

Digital & Analogue Outputs

The digital and analogue outputs (2 each) can be configured to output velocity (or other GPS parameters) for use by additional data logging equipment.

Attitude Angles

You can measure slip angle, pitch/roll angle, yaw rate, true heading, and velocity simultaneously with the dual antenna version.

SD Card Logging

Data is stored to SD card in a standard PC format (ASCII text) allowing fast transfer of data to a PC with an SD card reader.

Which VBOX II is right for you?

VBOX IISX - Single Antenna

Available with an update rate of 20, 10 or 5 times a second, the VBOX IISX features a built-in display, SD card logging, high speed brake trigger input, CAN interface and two sets of analogue and digital outputs.

Due to its small size and simple installation, VBOX IISX is ideally suited for use in cars, bikes, off-road vehicles and boats.

VBOX IISX range of GPS data loggers gives a high standalone positional accuracy of <1 m, utilising the free WAAS/EGNOS correction service.

Download datasheet

Brake & Tyre Testing

Having a maximum update rate of 20 Hz is still plenty fast enough for brake testing. You don’t quite get the phenomenal ±1.8 cm resolution of the VBOX 3i, but for many purposes the ±10 cm achieved is more than adequate. The VBOX IISX has a high speed brake trigger input, which scans for a braking event 100,000 times a second.

Performance Testing

This unit is perfect for all variations of performance testing, the accuracy and quick response of the 20 Hz unit gives very repeatable and accurate results, when tested back to back with the VBOX 3i, they are within a few hundredths of a second every time.

Durability Testing

The lower sample rates of 5 Hz and 10 Hz make this unit suitable for long term testing where high speed logging is not required.

VBOX IISX - Dual Antenna

The VBOX IISX Dual Antenna has an update rate of 20 Hz and features a second GPS engine.

By using two GPS engines configured in a 'fixed baseline RTK setup', extra parameters such as slip and pitch angle (or in an alternative configuration roll angle) can be measured. This makes it ideal for dynamic testing, steady-state cornering, and the measuring of trailer angles (two systems needed).

It's standalone positional accuracy is <1 m, utilising the free WAAS/EGNOS correction service.

Download datasheet

Handling and Dynamics

By utilising two GPS engines, the VBOX IISX Dual Antenna measures all the normal GPS parameters, such as speed, position and distance, plus the direction both antennas are pointing and the angle between them. All parameters are captured at 20 Hz.

Free Data Analysis Software

VBOX Test Suite

Our user-friendly, intuitive data analysis software comes pre-loaded with application specific plugins that make it quick and easy to conduct Braking, Coastdown, Pass-By Noise, Performance and Tyre tests.

  • Over 25 application specific plugins
  • Live and post-event data analysis
  • Analyse multiple data sets simultaneously
  • Create your own custom tests
  • Customisable layout
  • Easily create charts, tables and reports
Learn more

Technical Specifications

Velocity

Accuracy
0.1 km/h
(averaged over 4 samples)
Units
km/h or mph
Maximum velocity
1000 mph
Minimum velocity
0.1 km/h
Resolution
0.01 km/h
Latency
41.5 ms

Velocity

Accuracy
0.1 km/h
(averaged over 4 samples)
Units
km/h or mph
Maximum velocity
1000 mph
Minimum velocity
0.1 km/h
Resolution
0.01 km/h
Latency
30.5 ms, or 31.5 ms using two antennas

Acceleration

Accuracy
0.50%
Maximum
20 g
Resolution
0.01 g

Absolute Positioning

Accuracy (Standalone)
V: 3 m; H: 6 m*
Accuracy with SBAS
V: 0.8 m; H: 2 m*
Accuracy with DGPS
V: 0.4 m*
Resolution
1.85 mm

*95% CEP (Circle of Error Probable). This means that 95% of the time the position readings will fall within a circle of the stated radius.

Absolute Positioning

Accuracy (Standalone)
V: 3 m; H: 6 m*
Accuracy with SBAS
V: 0.8 m; H: 2 m*
Accuracy with DGPS
V: 0.4 m*
Resolution
1 cm

*95% CEP (Circle of Error Probable). This means that 95% of the time the position readings will fall within a circle of the stated radius.

Heading

Accuracy
0.1°
Resolution
0.01°

Brake Stop

Accuracy
±20 cm

Brake Stop

Accuracy
±15 cm

Brake Stop

Accuracy
±10 cm

Distance

Accuracy
0.05 % (<50 cm per km)
Units
m or ft
Resolution
1 cm

Pitch/Roll Angle Accuracy

0.5 m Antenna Separation
<1.0° rms
1 m Antenna Separation
<0.5° rms
2 m Antenna Separation
<0.25° rms

Slip Angle Accuracy

0.5 m Antenna Separation
<0.5° rms
1 m Antenna Separation
<0.25° rms
2 m Antenna Separation
<0.1° rms

Yaw Rate

Noise (RMS)
0.75°/s*

*Please note that the slip angle sensor calculated yaw rate is significantly noisier than a solid state sensor for yaw rate measurement, such as the IMU04 or YAW03 sensor.

View all product specifications:
VBOX IISX - Single Antenna
VBOX IISX - Dual Antenna

How does it work

GPS in Vehicle Testing

How do you derive velocity, distance, position & vehicle body attitudes from GPS? Which factors are crucial in producing accurate measurements for vehicle testing?
Find out here

Measuring Attitude Angles

How do you measure true heading, yaw rate, lateral and longitudinal velocity, slip angle and pitch angle with a twin antenna setup?
Find out here
