VBOX LapTimer

VBOX LapTimer is ideal whenever a consistent and repeatable real-world test is required, or when tests need to extend for many hours.

  • 10 Hz GPS data logging
  • Inbuilt and external GPS antenna
  • Ideal for fuel economy & durability testing
  • Useful for tyre testing & real-world verification

Key Features


10 Hz Update Rate

10 Hz GPS receiver with internal patch antenna. An external GPS/GLONASS antenna is supplied for enhanced positional accuracy.

Easy Operation

Three buttons to scroll screens, set start/finish points, reset data, start/stop logging, and enter menus.

SD Card Logging

The Lap Timer can record to the MMC, SD, SDHC and SDXC media cards that are formatted in a FAT or FAT32 format.

Powerful Analysis Software

Analyse your data with our free VBOX Test Suite software.

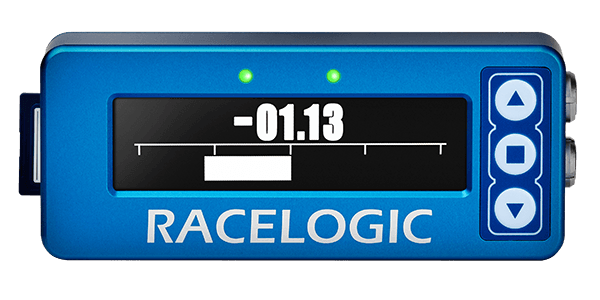

VBOX LapTimer is a 10 Hz GPS data logger and OLED display in one.

It provides real-time display of live speed, lap count, max. speed, lap times, or predictive lap times (delta time).

The data is calculated at all times, even if it is not displayed and is stored onto an SD card for later examination.

VBOX LapTimer can be used as an OLED display when connected to a VBOX or Speed Sensor unit.

The VBOX LapTimer records the following parameters as standard:

  • Time
  • Position
  • Velocity
  • Vertical velocity
  • Height
  • Heading
  • Accumulated Distance
  • Acceleration

Display Modes

VBOX LapTimer has ten different display modes which can be accessed using the UP and DOWN buttons on the front panel.

The data on each screen is calculated at all times, even if it is not displayed.

Live Speed

Max Speed

Speed Bar

Lateral G

Lateral G Bar

Longitudinal G

Longitudinal G Bar

Lap Timing

Predictive Lap Timing

Lap Count

Free Data Analysis Software


All VBOX data loggers come with free data analysis software, making it easy to test in real-time.

VBOX Test Suite

Our user-friendly, intuitive data analysis software comes pre-loaded with application specific plugins that make it quick and easy to conduct tests.

  • Over 25 application specific plugins
  • Live and post-event data analysis
  • Create your own custom tests
  • Customisable layout
  • Easily create charts, tables and reports
  • Analyse data sets simultaneously

Technical Specifications


  • Update rate: 10 Hz
  • Speed accuracy: 0.1 km/h
  • Position accuracy: V: 3 m; H: ±5 m (95% CEP)
  • Constellations: GPS & GLONASS
  • Antenna: Internal Patch Antenna or External Antenna
  • Logging media: SD card
  • Mounting: Lightweight camera/display suction mount included
  • Operating Temperature: -20 to +70°C
  • Power: 1.5 W
  • Input: 7 –30 V DC
  • IP Rating: 31
