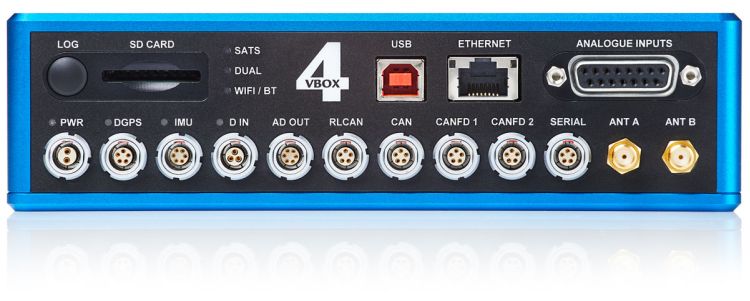

VBOX 4 Total Testing
Alongside high-accuracy data loggers, we design and manufacture a full suite of sensors and modules, ensuring you have all the equipment needed for efficient, comprehensive testing from a trusted source.
Our equipment meets the standards of Euro NCAP, NHTSA, and other regulatory bodies, making VBOX a future-proof investment.
RTK as Standard
100 Hz GNSS RTK receiver delivers cm-level accuracy when combined with an NTRIP modem or Base Station.
Resilient Signal Capture
With its dual-band GNSS receiver supporting up to four constellations, VBOX 4 offers enhanced positional accuracy and reliability.
Brake Trigger
Capture the precise moment that braking starts, delivering brake stop accuracy to within ±1.8 cm.
Full CAN Logging
Take advantage of two dedicated CAN FD ports, an additional CAN Bus and a fourth Bus for Racelogic module input.
IMU Integration
Combines seamlessly with VBOX IMU05 to improve data accuracy in challenging GNSS conditions.
Robot Compatibility
Compatible with driving robots from all leading manufacturers including AB Dynamics, Humanetics, VEHICO and 4a.
Free Lifetime Support
RACELOGIC provide comprehensive support and software updates at no additional cost for the entire lifetime of your VBOX product.
Powerful Software
Preloaded with over twenty-five application-based modules, VBOX Test Suite analysis software enables you to effortlessly conduct a range of tests that conform to the latest global regulations.

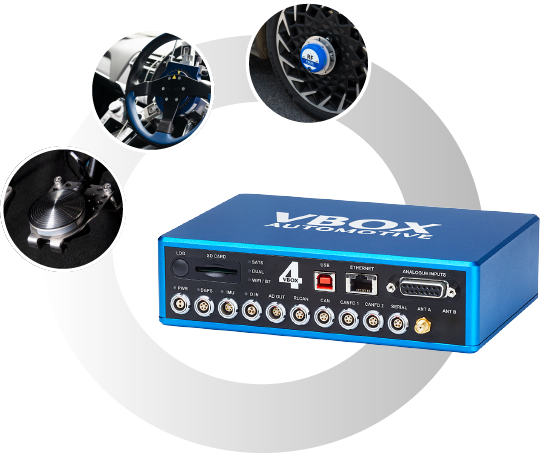

Total Testing With VBOX
VBOX 4 seamlessly integrates with a wide range of VBOX sensors, modules, accessories, as well as third-party products, providing engineers with a comprehensive test solution.

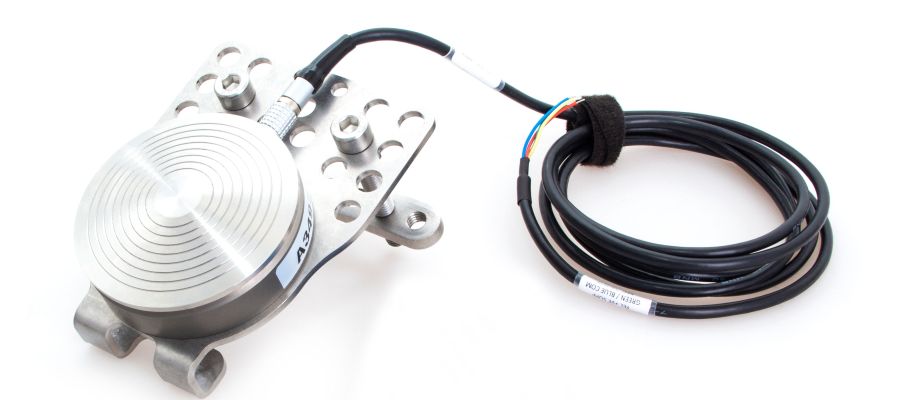

Pedal Force Sensor
Measure force to SAE and ECE standards. The universal mount provides easy installation on all types of vehicle pedals.

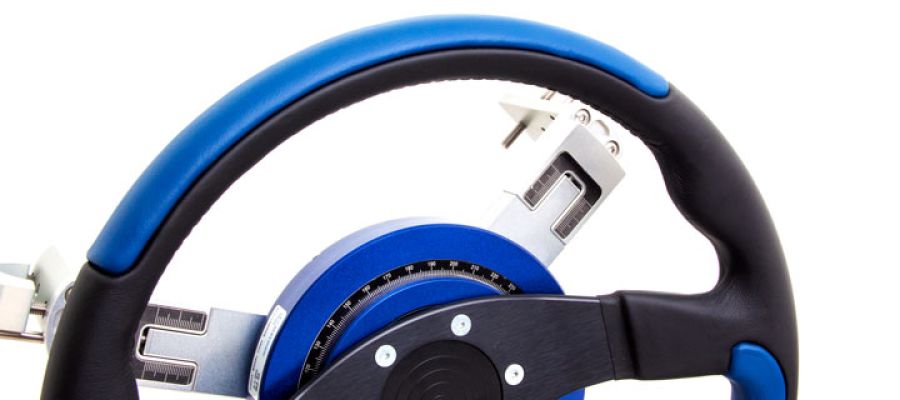

Steering Torque Sensor
Measure steering angle or torque with this easy to install, ISO 17025 calibrated sensor. Available in 50, 100 or 200 Nm models.

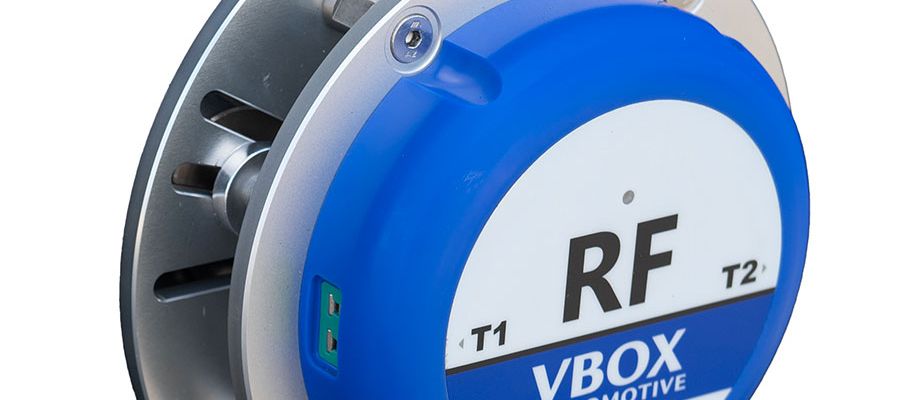

Wheel Speed Sensor
Accurately measure wheel speeds up to 100 times a second. These sensors utilise wireless technology and come with universal mounting.
