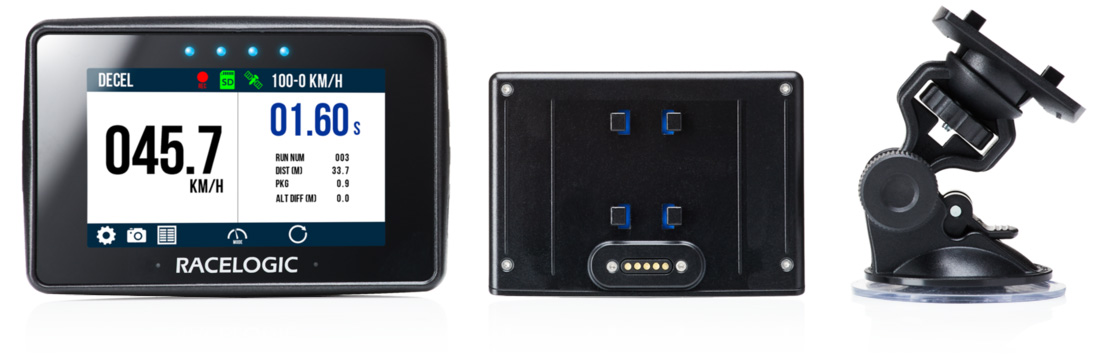

Performance Box Touch

Simple 25 Hz data logger with touch screen for performance testing, lap timing and speed display.

25 Hz GPS data logging
4.3” colour touchscreen
Performance, lap timing & speed display
Up to 6 hrs battery lifetime

Download datasheet

Watch Video

Features

Large Touch Screen

4.3" TFT daylight readable capacitive touch screen, 480*800 pixels

Live Slope Correction

The slope correction mode for acceleration tests will correct the acceleration time result relative to the gradient the test was performed on and display the results live on screen*.

6 hrs battery lifetime

Optional clip-on battery allows you to record for up to 6 hours without plugging in the power lead.

Inbuilt GNSS Antenna

25 Hz GNSS receiver with internal patch antenna and optional external GNSS antenna (overrides the internal antenna when connected)

Free Analysis Software

Analyse your vehicle's performance in a range of acceleration and braking tests with VBOX Test Suite.

SD Card Logging

All parameters are logged to an SD card ten times per second and can be viewed and analysed in detail.

*The slope correction is calculated within the unit only and the result shown live on screen. The same results will be reflected in the result history and included in any exported data (from that history screen). However, the slope correction cannot be recreated in post-process analysis.

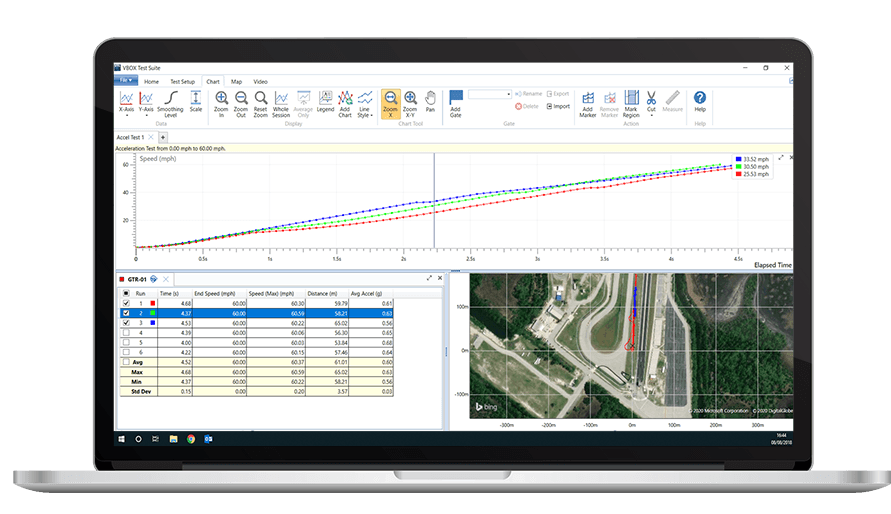

VBOX Test Suite Software

VBOX Test Suite, our user-friendly, intuitive data analysis software makes the analysis of vehicle acceleration and brake test data quick and clear.

Dedicated plugins and visual aids such as charts, graphs and tables allow you to analyse your data in more detail.

More about VBOX Test Suite

Chart Area

Acceleration Test

The chart area gives a graphical representation of the data contained within your test file, in this case three runs from a 0 to 60 mph.

Any channel (e.g. Speed against Time) can be set as X/Y axis, and multiple channels and files can be overlaid.

Track Map Position

Accel Test

The map area shows a positional trace from either the saved data contained within a file or real time live data.

Selecting 'Show Aerial Image/Road Map' dropdown menu will overlay either an aerial image or road map from Bing Maps onto the map area.

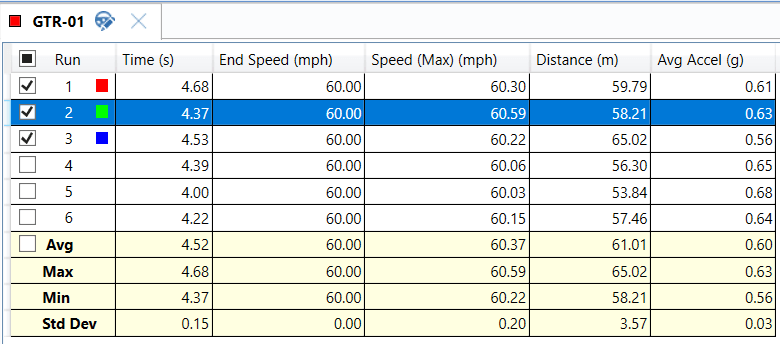

Test Result Table

Accel Test

The test results area displays all of the results from the current test. Within this area it is possible to include/exclude results from the chart area, display the average/max/min values and also easily identify any runs which have not met the pass criteria.

Operation Modes

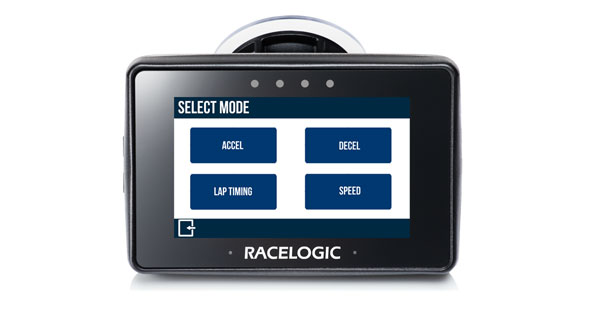

Performance Box Touch has 4 modes available which allow you to conduct a range of performance tests and functions: Acceleration, Deceleration, Lap Time and Speed.

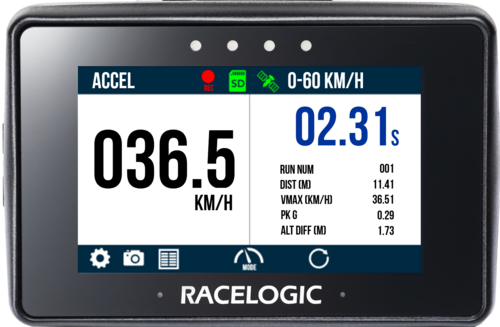

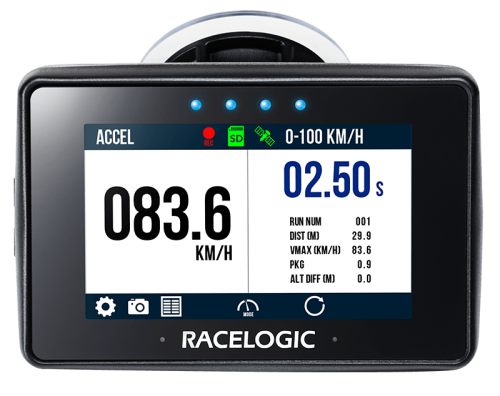

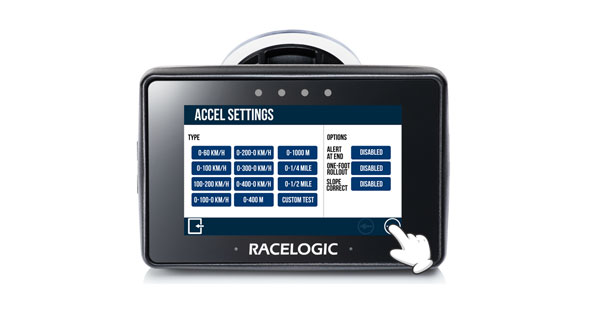

Acceleration Mode

Acceleration tests: 0–60, 0–100, 100–200 km/h or mph.
Other predefined tests: 0–100–0, 0–200–0, 0–300-0 and 0–400-0 km/h or mph tests or distance including 0–400 and 0–1000 meters as well as 0–¼ mile and 0–½ mile.
Custom tests can be configured, and other options include enabling or disabling alert at end of test, one-foot rollout and slope correction.

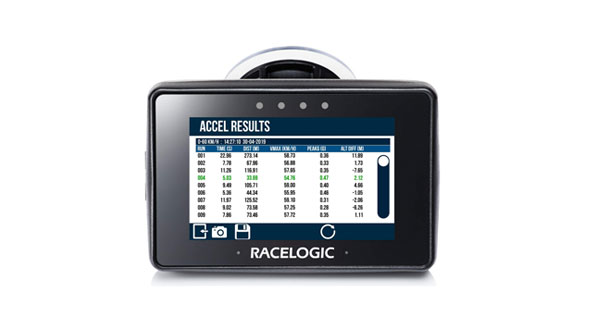

Screen displays time, run number, distance, VMAX, Peak G and altitude difference. Units of measurement for speed or distance can be easily swapped between metric or imperial.

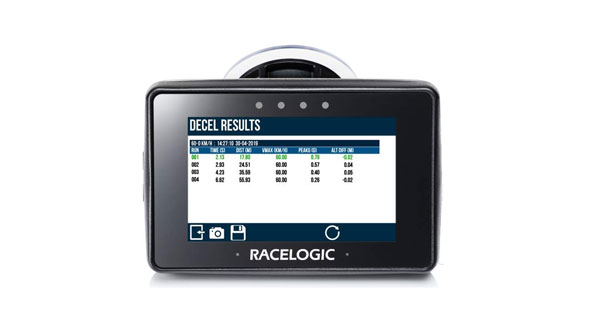

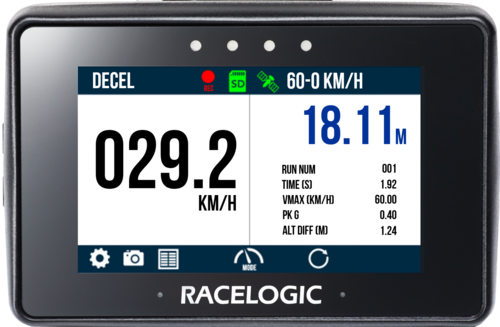

Deceleration Mode

Deceleration tests: 60–0, 100–0, 200–0, 300–0 km/h or mph.
Custom tests allowing the user to define their own configurable settings.
Screen displays time, run number, distance, Peak G and altitude difference. Units of measurement for speed or distance can be displayed in metric or imperial and easily swapped between.

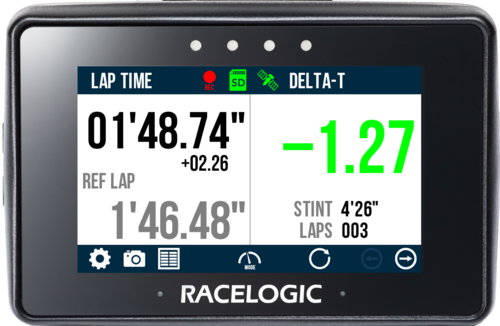

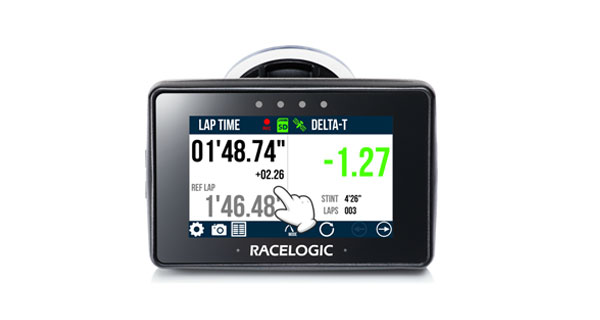

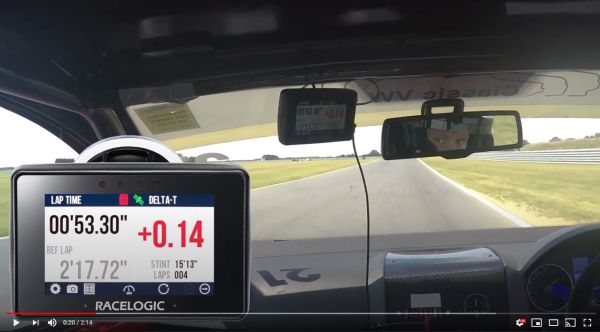

Lap Timing Mode

Sophisticated lap timer with an updatable built-in database of over 800 circuits, real-time Delta-time, Delta-speed (shown via LEDs), Best Lap Time, Current Lap Time, Total Session Time and Lap Count.
Virtual Start/Finish Lines: Using GPS, there is no need for an external beacon or transmitter, as timing will start with vehicle movement. Separate start and finish lines can be set for sprint or hill climbing.

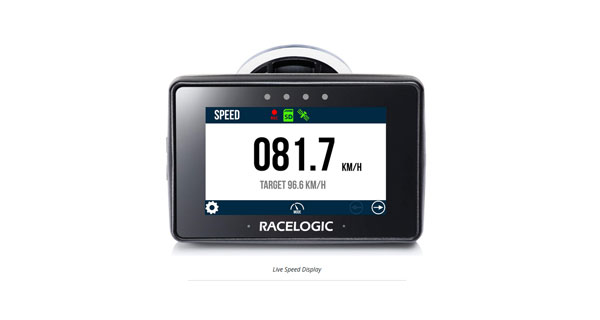

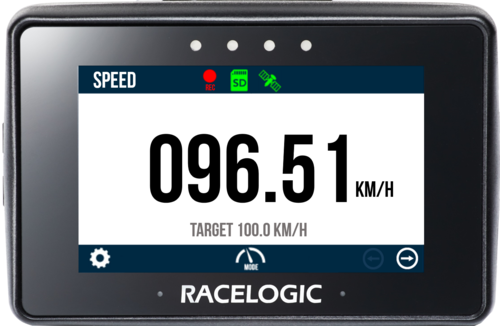

Speed Display Mode

Digital speedometer: Performance Box Touch also works as a highly accurate digital speedometer, a handy feature for street driving.
Units can be set in km/h or mph and display can show live speed, VMAX, average speed and distance including setting a target speed.
