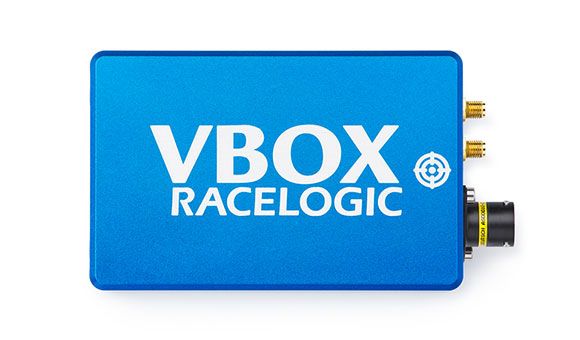

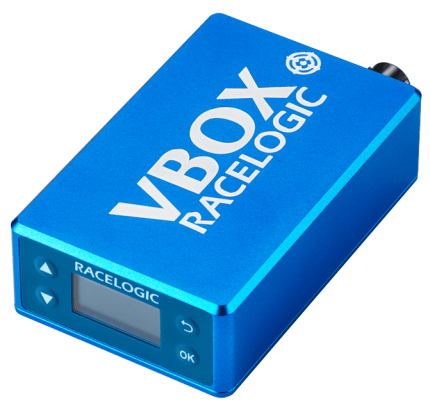

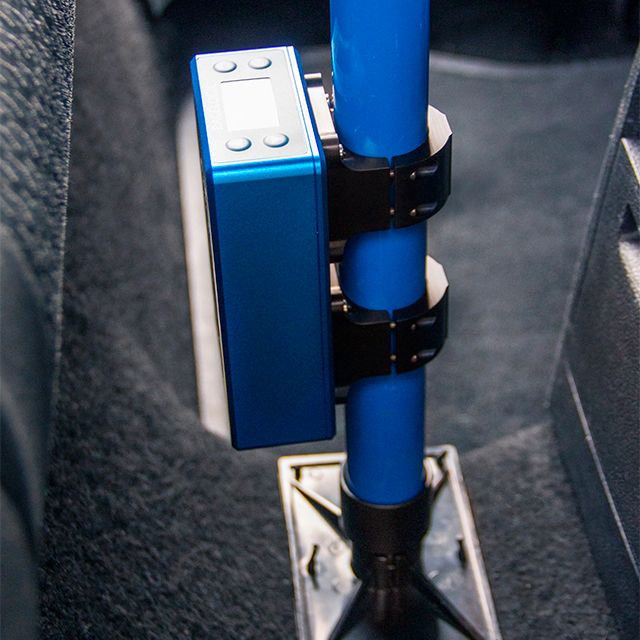

VBOX 3iS

Compact GNSS-aided Inertial Navigation System that also integrates wheel speed data from the vehicle’s CAN bus

  • Reliable position & velocity in areas with poor GNSS
  • Connects to your existing control system or data logger
  • Ideal for multi-vehicle, multi-target ADAS testing
  • Compatible with steering robots
  • RTK option for 2 cm positional accuracy

Key Features

High performance GNSS receiver

The 100 Hz multi-constellation, multi-frequency GNSS engine tracks both the GPS and GLONASS networks of satellites and ensures that data is accurately captured, even in restricted sky view conditions.

Reliable testing in poor GNSS conditions

In GNSS denied environments, such as tunnels and deep urban canyons, VBOX 3iS significantly improves the accuracy of the estimated speed and position data by combining wheel speed information with GNSS and inertial data.

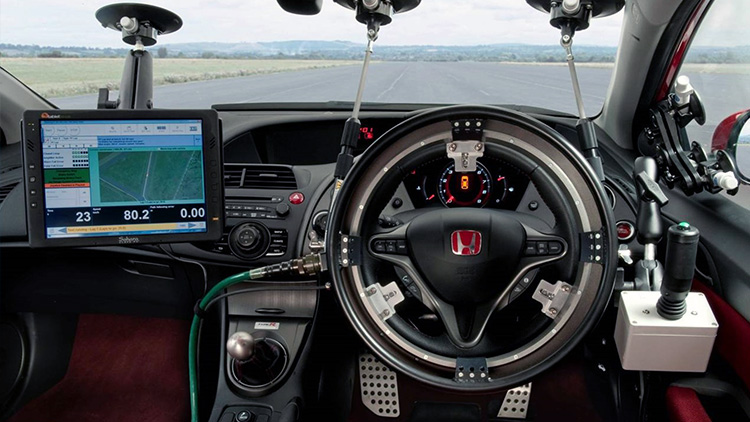

Compatible with steering robots

The RTK option offers greater positional accuracy when used in conjunction with a VBOX Base Station or other RTCMv3 service like NTRIP. This allows it to be used for robot guidance.

Cost-effective ADAS testing solution

Connected to another VBOX 3i RTK the VBOX 3iS can act as a moving target and offers a cost-effective testing solution for multi-vehicle, multi-target ADAS validation and autonomous vehicle testing.

High-grade IMU

The integrated IMU offers precise measurements of pitch, roll and yaw and also helps fill GNSS gaps.

Robust & waterproof

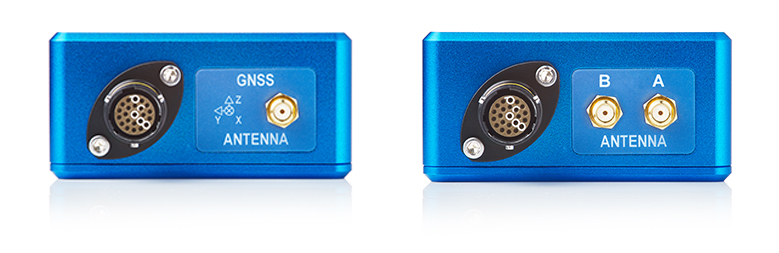

VBOX 3iS features a high quality aluminium enclosure, rugged Deutsch ASDD Autosport connectors and is dust and waterproof to IP67.

Extremely versatile

VBOX 3iS is designed to be used with your existing control system or data logger and connects via Serial or CAN.

Wheel speed integration

By using the existing CAN bus information from the vehicle, the VBOX 3iS removes the need to fit expensive external wheel speed sensors that are difficult to fit and vulnerable to damage.

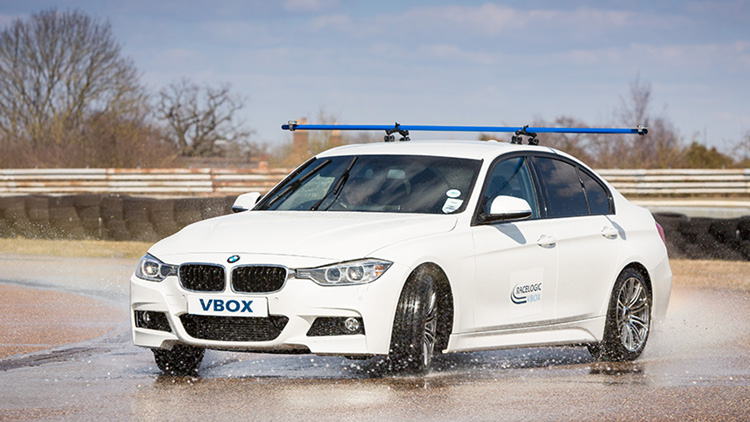

Applications

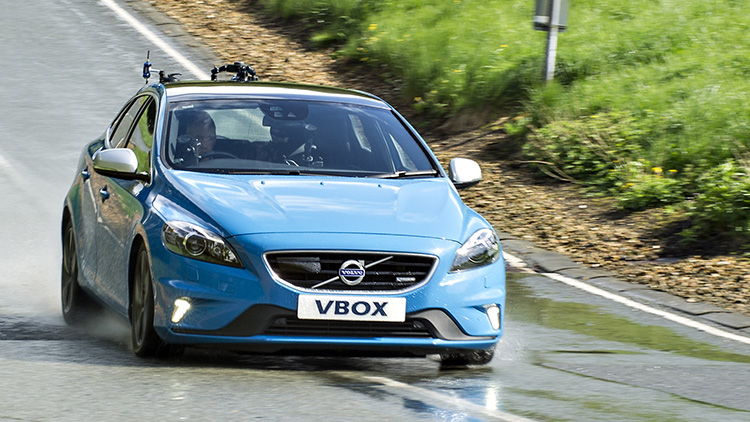

VBOX 3iS is an extremely cost-effective solution for ADAS validation, steering robots and autonomous vehicle testing, and can also be used for conducting performance, braking and benchmarking tests. It has an oversampled event marker to precisely capture the start of tests such as braking.

In areas with limited or no satellite signal (such as tunnels or test tracks surrounded by trees), the VBOX 3iS can fill in the gaps for prolonged periods of time – allowing you to continue testing without having to worry about erroneous data.

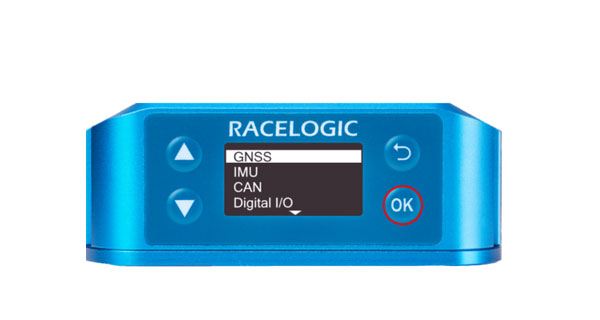

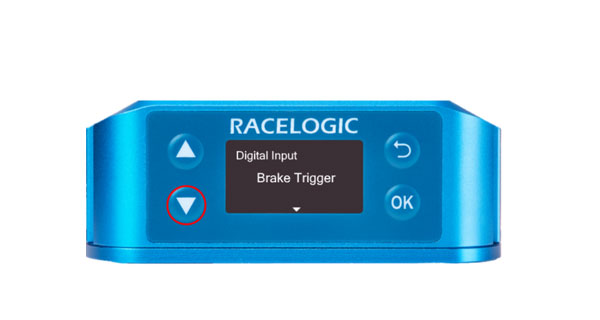

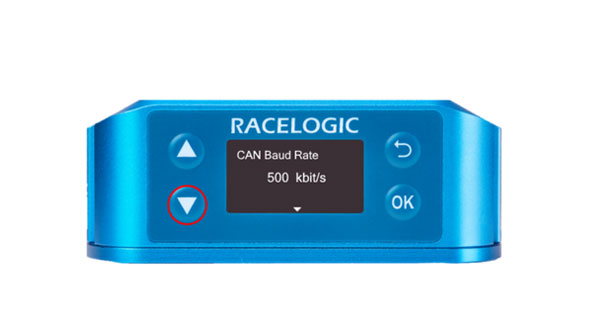

Tutorials

You might be interested in ...

This video shows onboard footage from a car equipped with a VBOX 3iS driving through a multi-storey car park. You can see on the real-time graphic overlay that we are able to achieve sub 50 cm accuracy throughout the car park.

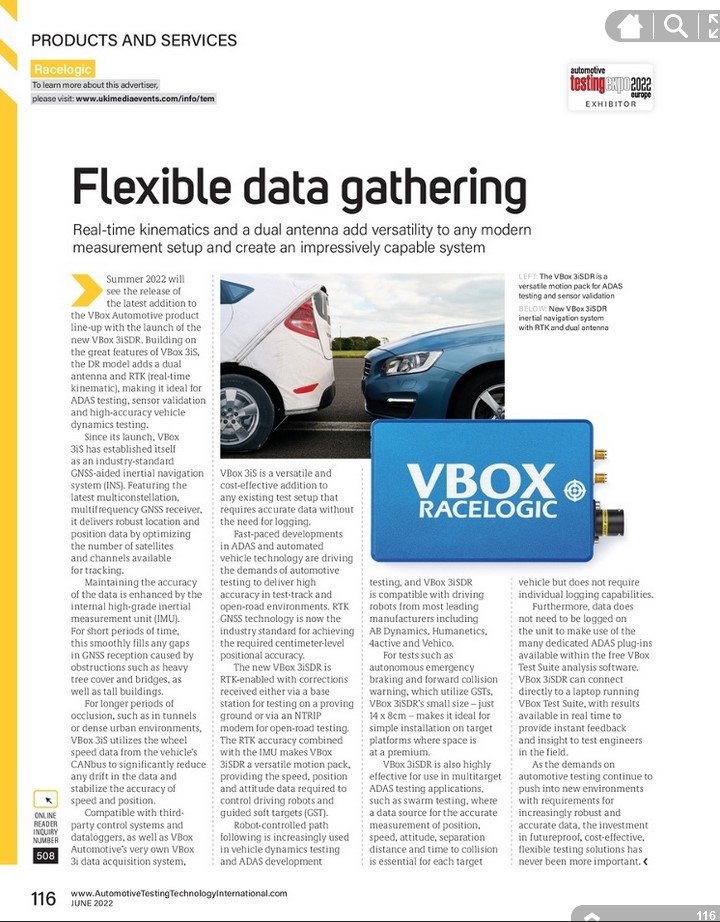

This VBOX 3iS product feature was published in the Automotive Testing Magazine International magazine in March 2019. Read the article here.

Technical Specifications

GNSS Specifications

Absolute Positioning

  • Accuracy Standalone*: V: 3 m, H: 6 m
  • Accuracy with SBAS*: <1.8 m
  • Accuracy with RTCM DGNSS*: V: 0.4 m, H: 2 m
  • Accuracy with RTK*: 0.02 m
  • Update rate: 100 Hz

 *95% CEP (Circle of Error Probable). 95% of the time the position readings will fall within a circle of the stated radius.

Velocity

  • Accuracy: 0.1 km/h (averaged over 4 samples)
  • Update rate: 100 Hz
  • Maximum velocity: 655 knots (1200 km/h)
  • Minimum velocity: 0.1 km/h
  • Resolution: 0.01 knots (0.0185 km/h)
  • Latency: 15.5 ms

Acceleration

  • Accuracy: 0.50 %
  • Maximum: 20 g
  • Resolution: 0.01 g
  • Update rate: 100 Hz

Distance

  • Accuracy: 0.05 % (<50 cm per km)
  • Update rate: 100 Hz
  • Resolution: 0.078 mm

Heading

  • Resolution: 0.01°
  • Update rate: 100 Hz

Time

  • Resolution: 0.01 s
  • Accuracy: 30 ns

Brake Stop Accuracy

  • Accuracy: ± 1.8 cm
    (based on <50 m brake stop distance)

Roll & Pitch Angle Accuracy

  • Pitch Angle: 0.06° RMS
  • Roll Angle: 0.06° RMS

IMU Specifications

Gyroscopes (Angular rate sensors)*

  • Dynamic range: ±450°/s
  • Nonlinearity: 0.01% FS
  • Resolution: 16 bit ADC (0.014°/s)
  • Bandwidth: 50 Hz
  • Noise density: 0.01 °/s/√Hz
  • Bias stability: ±0.003 °/s
  • Bias repeatability (1 year): 0.2 °/s

Accelerometers*

  • Dynamic range: ±20 g
  • Nonlinearity: 0.1 % FS
  • Resolution: 16 bit ADC (0.15 mg)
  • Bandwidth: 50 Hz
  • Noise density: 60 µg/√Hz
  • Bias stability: 15 µg
  • Bias repeatability (1 year): 0.005 g
*Inertial measurement sensors are highly sensitive mechanical systems. Their performance and life span can be impacted by severe vibration or heavy knocks, and we can only guarantee the gyroscope and accelerometer specifications for a maximum of 2 years from the date of purchase.
