ADAS Vehicle Separation

This app is used by a VBOX Touch RTK to calculate separation data between it and another VBOX Touch RTK unit (other unit running Performance App).

Watch video

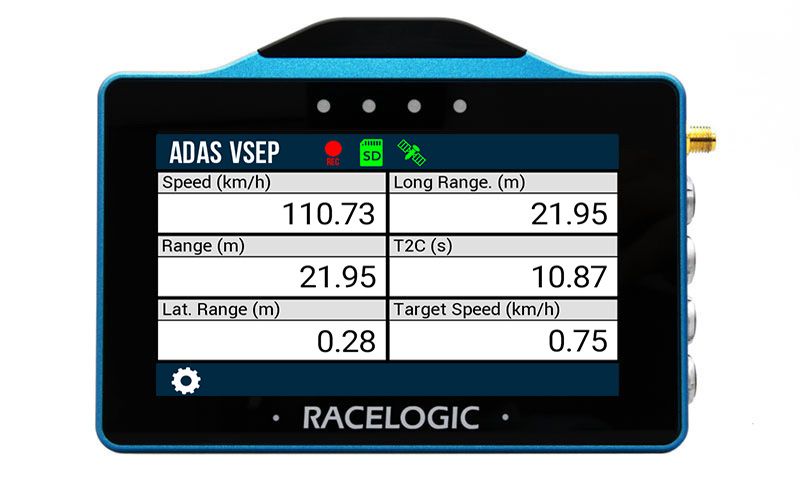

The screen displays the current vehicle speed, the speed of the other VBOX (Target), the time to collision between the two, as well as separation range, longitudinal range and lateral range calculations between the vehicles.  The calculated vehicle separation data is logged to an inserted SD card, and also transmitted from the VBOX, via CAN.

VBOX to VBOX communication radios are required. Please contact for more information.

1. Download the .rvf file.
   (Your unit must be registered to receive the required login details for the download. Register here.)
2. Place the .rvf file onto the root directory of the SD card (not in the media or any other folder).
3. Insert the SD card into the side panel of the unpowered unit.
4. Power up the VBOX Touch.
5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
6. Once complete, the unit will restart.

Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

The latest version offers support for 25Hz VBOX Touch V2 hardware.

Previous releases

Community Apps have not completed a full testing cycle and sign off. Users must be aware that the Apps may still contain bugs which can affect results.

If you use a Community App, please provide any performance feedback to so that we can continue to improve them for all our users.

It is your responsibility to make any shared users of the equipment aware that it is running a Community App – e.g. by fixing a temporary label to the unit.
