Accel Classifier

This app can be used to guide a test driver to accelerate or decelerate at specified rates based on their speed. The acceleration classifications can be adjusted easily by modifying a configuration file installed on the SD Card.

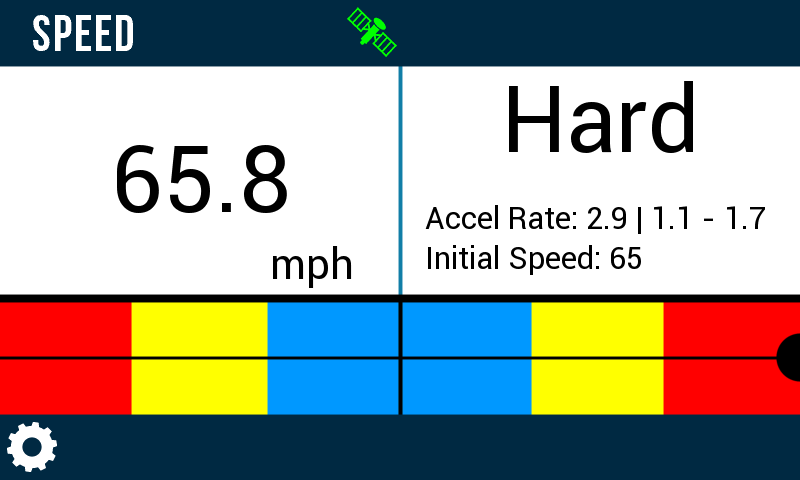

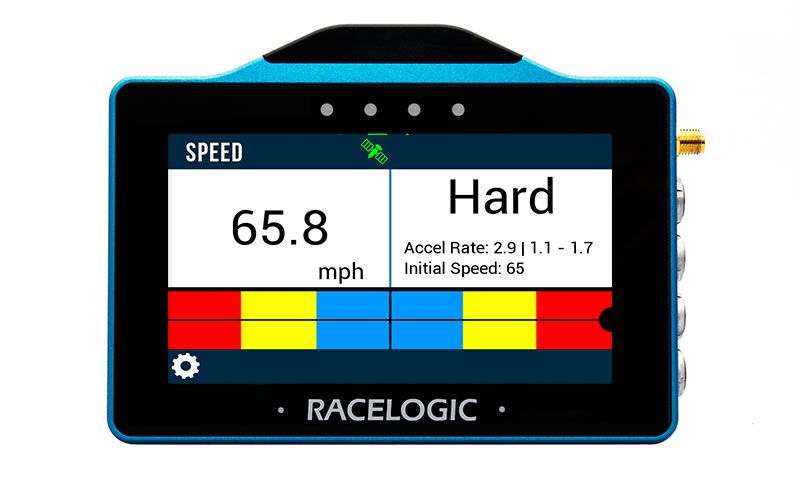

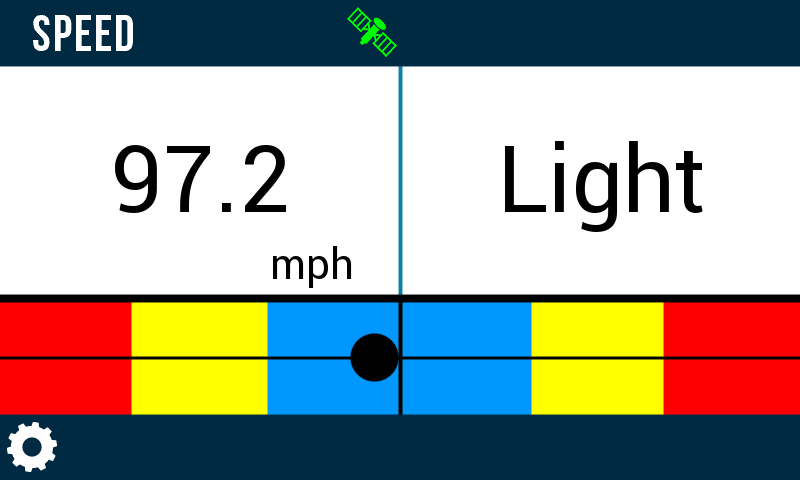

Accel/Decel can be classified as light, moderate or hard, with the current classification being indicated both on the screen and by the illumination of the LEDs.

1. Download the correct file for your product.
   (Your unit must be registered to receive the required login details for the download. Register here.)
2. Place the .rvf /.rpf file on to the root directory of the SD card (not in the media or any other folder).
3. Insert the SD card into the side panel of the unpowered unit.
4. Power up VBOX Touch/ Performance Box Touch.
5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
6. Once complete, the unit will restart.

Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

The latest release offers support for new VBOX Touch hardware variants.

Previous releases

Community Apps have not completed a full testing cycle and sign off. Users must be aware that the Apps may still contain bugs which can affect results.

If you use a Community App, please provide any performance feedback to so that we can continue to improve them for all our users.

It is your responsibility to make any shared users of the equipment aware that it is running a Community App – e.g. by fixing a temporary label to the unit.
